FOB Status Check

  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB KEY STATUS INFO".

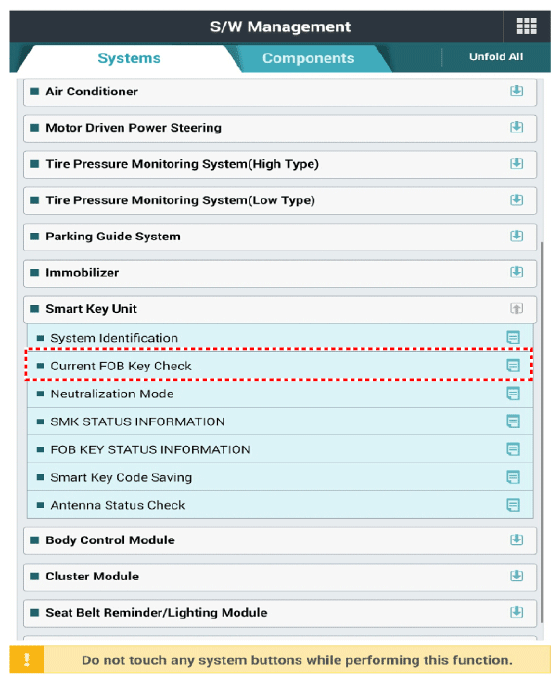

G12822545Courtesy of KIA MOTORS AMERICA, INC.

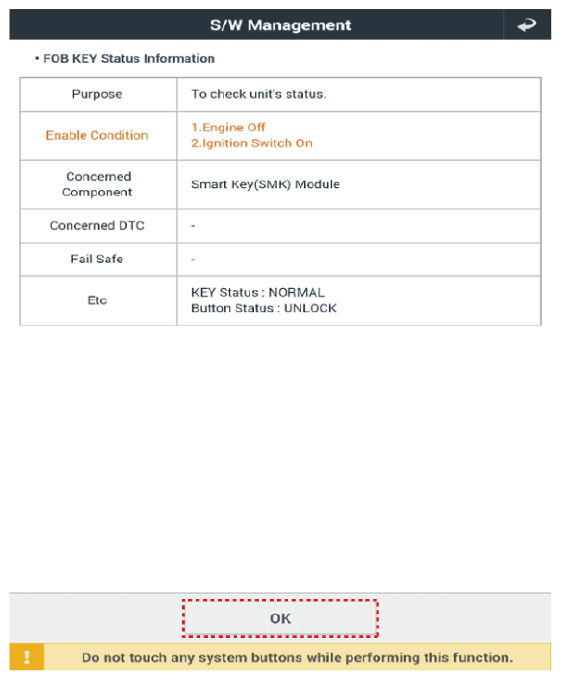

G12822546Courtesy of KIA MOTORS AMERICA, INC.

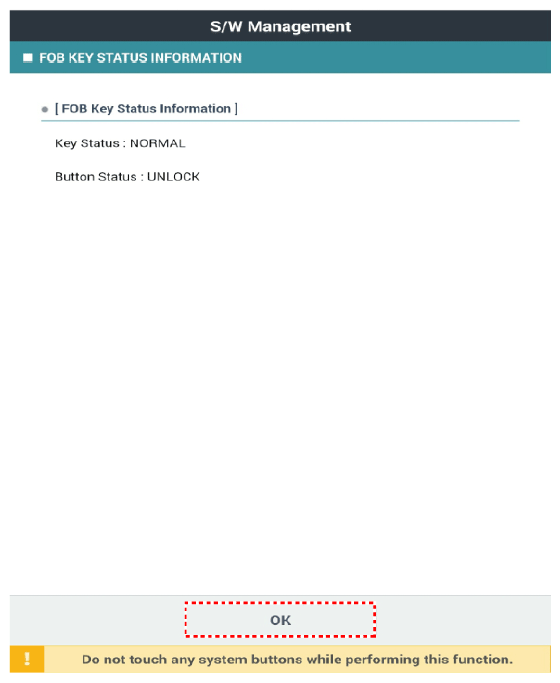

G12822547Courtesy of KIA MOTORS AMERICA, INC.
