Component Location

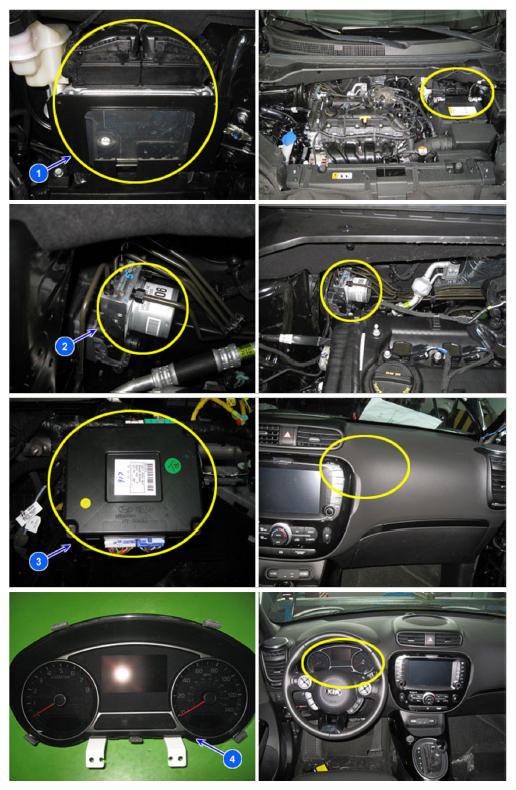

Fig 1: Locating PCM, HECU, BCM, SRS Control Module (G Sensor Integrated) And Instrument Cluster (1 Of 2)
G12209436Courtesy of KIA MOTORS AMERICA, INC.

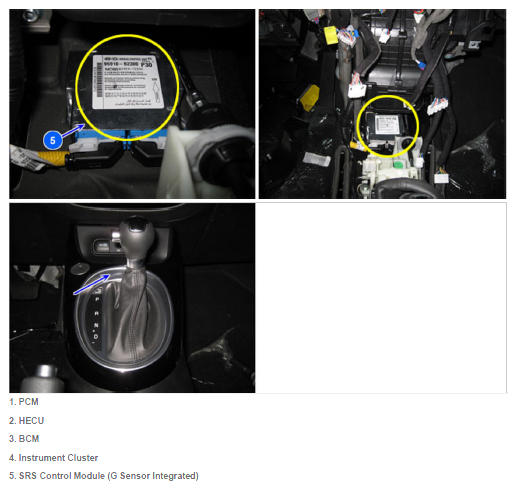

Fig 2: Locating PCM, HECU, BCM, SRS Control Module (G Sensor Integrated) And Instrument Cluster (2 Of 2)
G12209437Courtesy of KIA MOTORS AMERICA, INC.
