Section 13 (Automatic Transaxle System - 2.0L)
>>
Automatic Transaxle
>>
Components And Components Location
>>
Components Location
Components Location
WARNING:
This page is about a different variant/trim than selected.

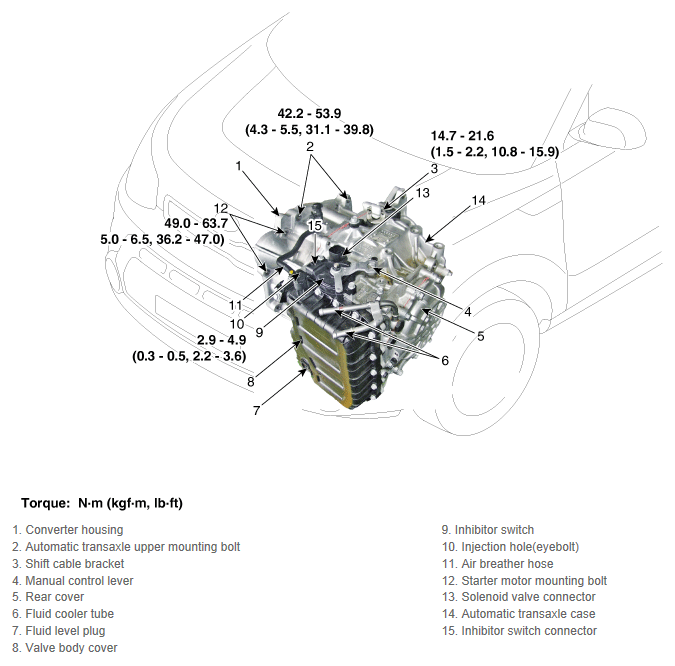

Fig 1: Automatic Transaxle Components With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
