Monitor KDS Data

  1. Connect KDS to Data Link Connector (DLC).
  2. Warm up the engine to normal operating temperature.
  3. Check the "Current Data" about related DTC with KDS.

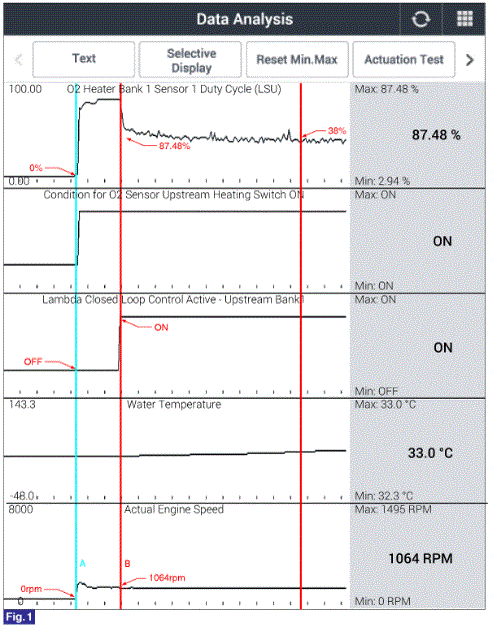

    Fig 1: Scantool Display - Engine Idle On Cold Condition
    G00578093

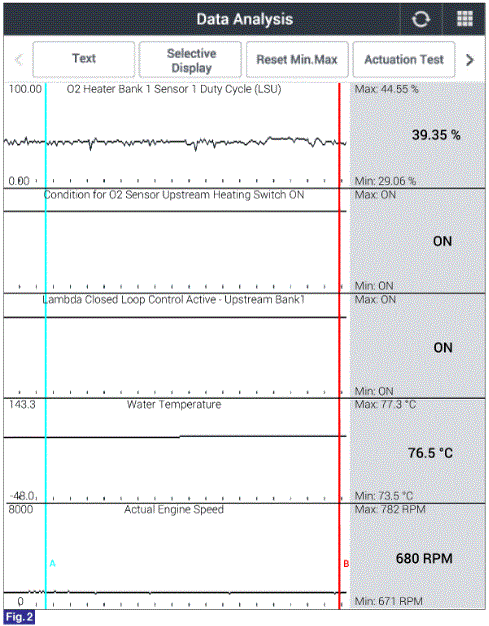

    Fig 2: Scantool Display - Engine Idle After Warm-Up
    G00578094
  4. Are the parameters displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Vehicle Repair " procedure.

    NO
