BSD Radar Calibration (Reference)

  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Ignition "ON".
  3. Select "Vehicle S/W Management  " with KDS/GDS.
  4. Select "BSD Radar Calibration" under Vehicle S/W Management.
  5. Refer to following procedure to perform Vehicle S/W Management.

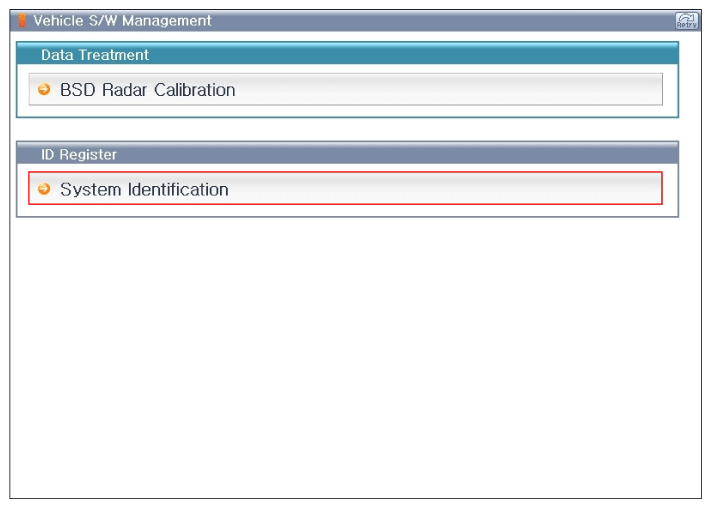

Fig 1: Scantool Display - BSD Radar Calibration 1
G12209161Courtesy of KIA MOTORS AMERICA, INC.

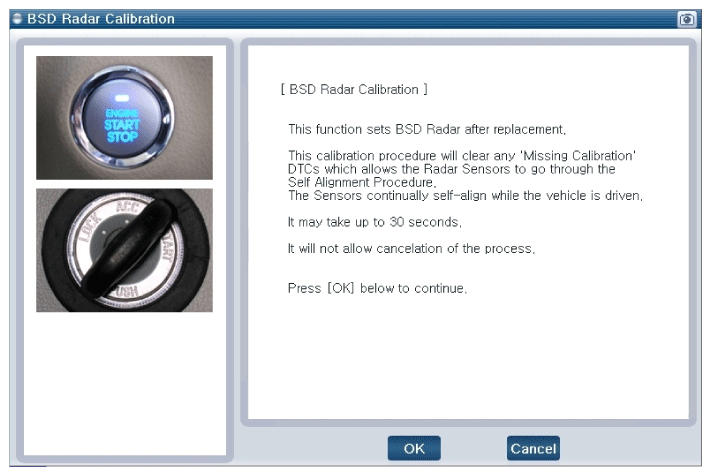

Fig 2: Scantool Display - BSD Radar Calibration 2
G12209162Courtesy of KIA MOTORS AMERICA, INC.

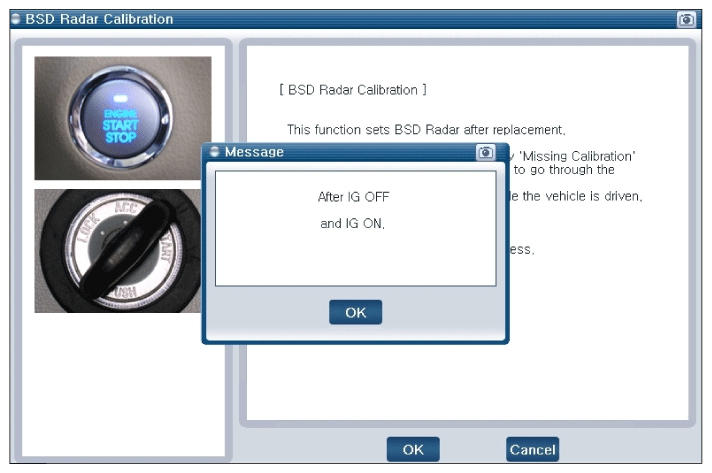

Fig 3: Scantool Display - BSD Radar Calibration 3
G12209163Courtesy of KIA MOTORS AMERICA, INC.

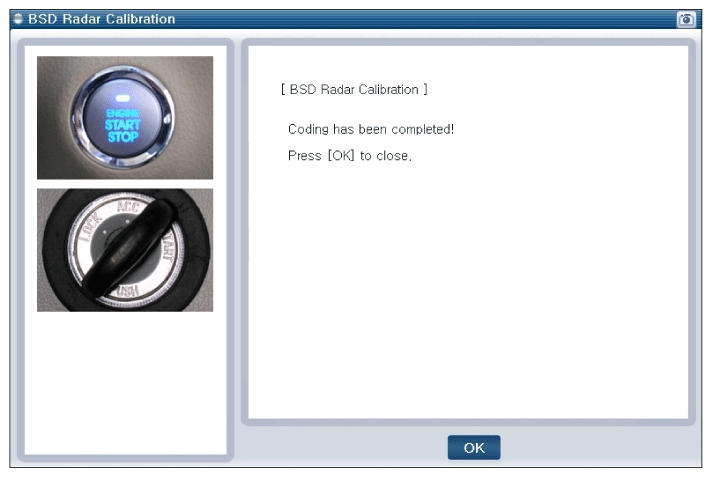

Fig 4: Scantool Display - BSD Radar Calibration 4
G12209164Courtesy of KIA MOTORS AMERICA, INC.
