Repair and Diagnosis
>>
Engine Mechanical
>>
Lubrication System - 1.6L T
>>
Flow Diagram
Flow Diagram

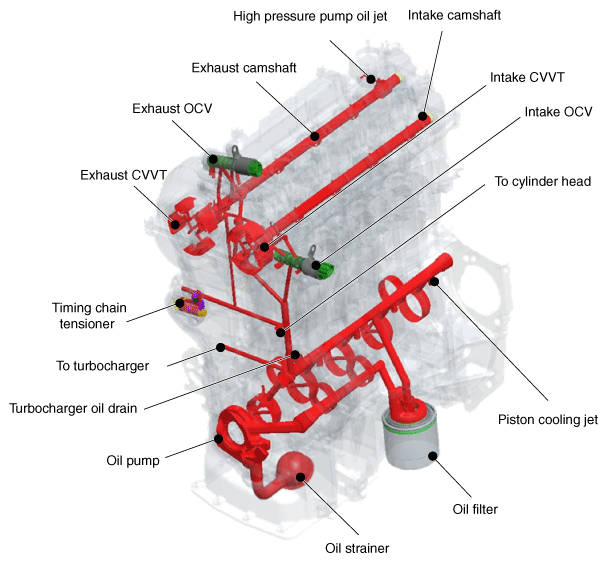

Fig 1: Lubrication System Flow Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
