Charging System - 1.6L T: Battery: Troubleshooting

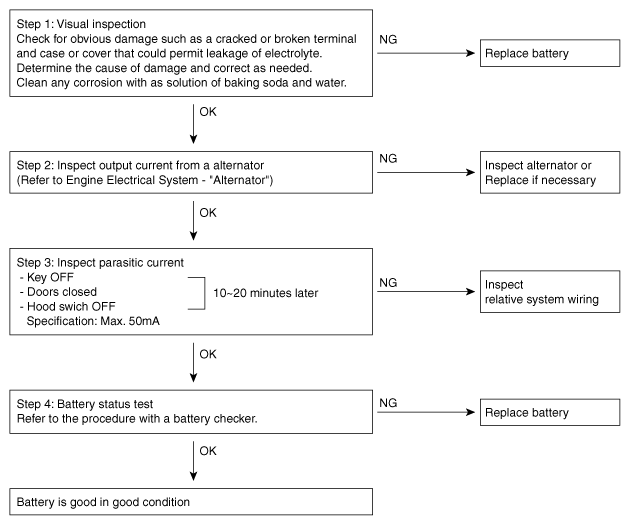

Fig 1: Battery Troubleshooting Chart

G12238478

Courtesy of KIA MOTORS AMERICA, INC.
