Components And Components Location: Components

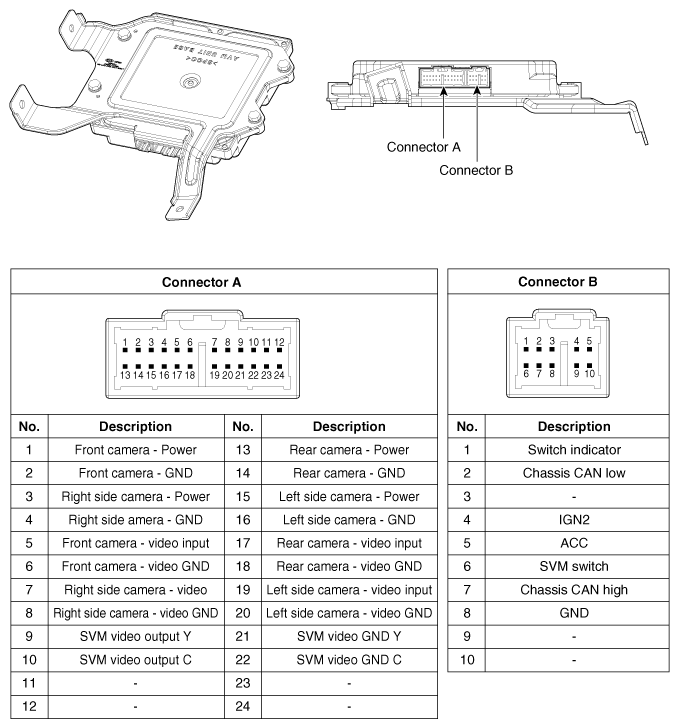

Fig 1: Surround View Monitoring Unit Connector End View And Terminal Description

G12391160

Courtesy of KIA MOTORS AMERICA, INC.
