Occupant Classification System (OCS) Mat

  1. Disconnect the battery negative cable, and wait for at least thirty seconds before beginning to work.
  2. Remove the front passenger seat assembly.

    (Refer to "FRONT SEAT ")

  3. Disconnect the Occupant Classification System (OCS) mat connector.
  4. Remove the front seat cushion assembly

    (Refer to "FRONT SEAT CUSHION COVER ")

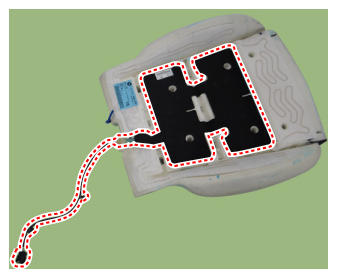

    Fig 1: Locating Front Seat Cushion Assembly
    G12172397Courtesy of KIA MOTORS AMERICA, INC.
