Second Row Seat Assembly: RH

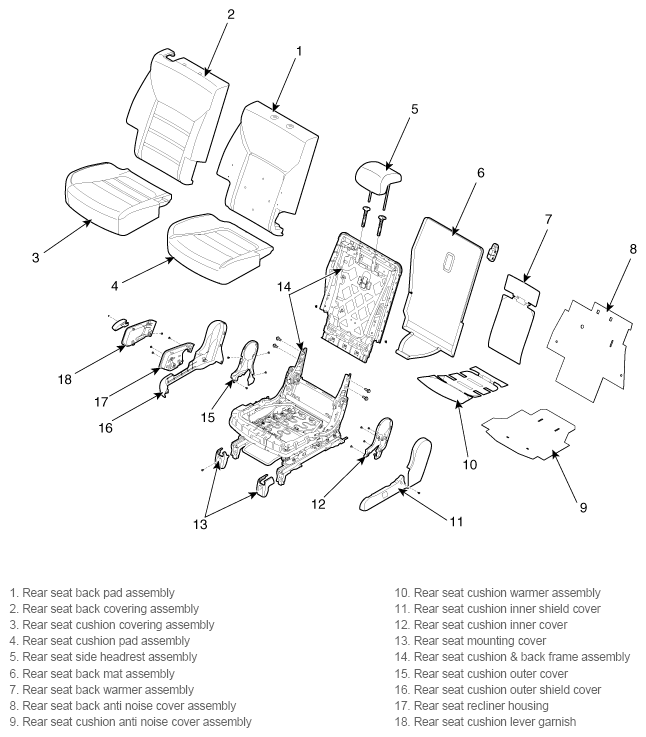

Fig 1: Second Row Seat Assembly Components (RH)

G12173028

Courtesy of KIA MOTORS AMERICA, INC.
