Home >> Kia >> 2018 >> Sorento L >> Repair and Diagnosis >> Body & Frame >> Seats >> Rear Seat Assembly >> Components And Components Location >> Components >> Second Row Seat Assembly >> LH

Second Row Seat Assembly: LH

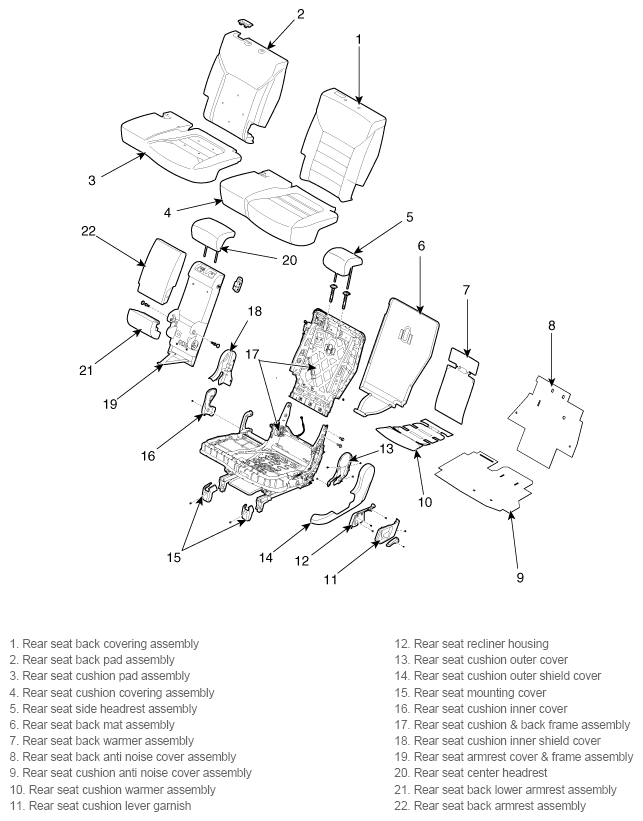

Fig 1: Second Row Seat Assembly Components (LH)

G12173027

Courtesy of KIA MOTORS AMERICA, INC.
