Repair Procedures: Replacement

CAUTION: Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the floor console assembly.
(Refer to "FLOOR CONSOLE ASSEMBLY ")
Flip over the console and disconnect the rear console connector (A).

Fig 1: Locating Rear Console Connector
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the rear console mounting screws (A).

Fig 2: Locating Rear Console Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.

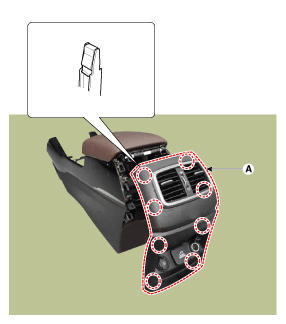

Using a screwdriver or remover, remove the rear console cover (A).

Fig 3: Locating Rear Console Cover
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
