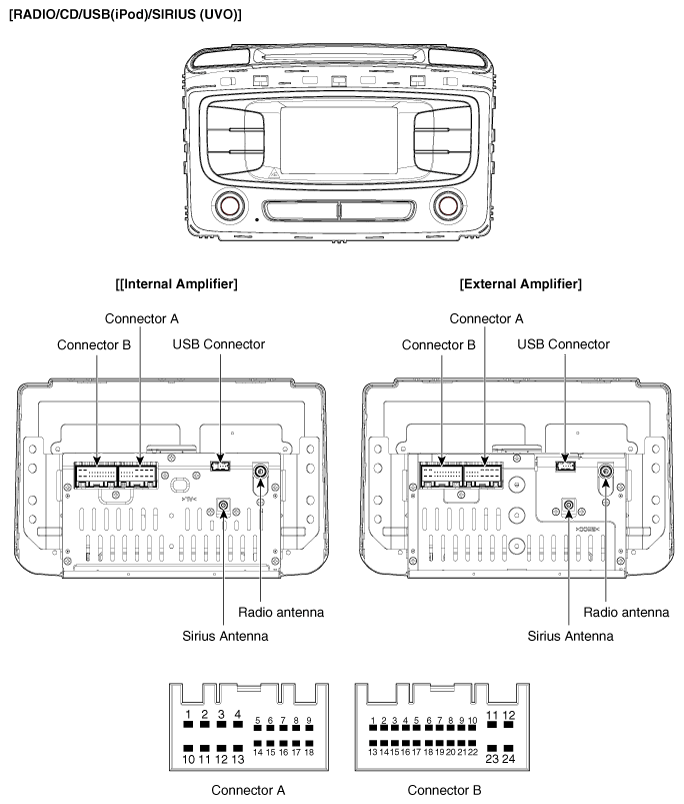

Connector Pin Information
| No. | Connector A | Connector B |
|---|---|---|
| 1 | Rear left speaker (+) | CAN High |
| 2 | Front left speaker (+) | - |
| 3 | Front right speaker (+) | - |
| 4 | Rear right speaker (+) | - |
| 5 | - | - |
| 6 | - | USB D (+) |
| 7 | - | USB/iPod VDD |
| 8 | Illumination (+) | AUX R IN |
| 9 | Detent | AUX GND |
| 10 | Rear left speaker (-) | Mic (+) |
| 11 | Front left speaker (-) | ACC |
| 12 | Front right speaker (-) | B+ |
| 13 | Rear right speaker (-) | CAN Low |
| 14 | - | - |
| 15 | - | - |
| 16 | - | Speed |
| 17 | Illumination (-) | - |
| 18 | Remote antenna | USB D (-) |
| 19 | - | USB/iPod GND |
| 20 | AUX DETECT | |
| 21 | AUX L IN | |
| 22 | Mic (-) | |
| 23 | - | |
| 24 | Power GND |
| Radio Antenna | No | Description | No | Description |
|---|---|---|---|---|
| 1 | Signal | 2 | Ground |
| Sirius Antenna | No | Description | No | Description |
|---|---|---|---|---|
| 1 | Signal | 2 | Ground |
| No. | Connector A | Connector B | ||
|---|---|---|---|---|
| - | Internal Amplifier | External Amplifier | Internal Amplifier | External Amplifier |
| 1 | Rear left speaker (+) | - | CAN high | CAN high |
| 2 | Front left speaker (+) | - | - | - |
| 3 | Front right speaker (+) | - | - | - |
| 4 | Rear right speaker (+) | - | - | - |
| 5 | - | SPDIF GND | - | - |
| 6 | - | SPDIF DN | Camera Vin | Camera Vin |
| 7 | - | - | Camera battery (+) | Camera battery (+) |
| 8 | Illumination (+) | Illumination (+) | AUX right input | AUX right input |
| 9 | - | - | AUX GND | AUX GND |
| 10 | Rear left speaker (-) | - | MIC (+) | MIC (+) |
| 11 | Front left speaker (-) | - | ACC | ACC |
| 12 | Front right speaker (-) | - | Battery (+) | Battery (+) |
| 13 | Rear right speaker (-) | - | CAN low | CAN low |
| 14 | - | - | - | - |
| 15 | - | SPDIF DP | - | - |
| 16 | - | - | Speed input | Speed input |
| 17 | Illumination (-) | Illumination (-) | - | - |
| 18 | Remote antenna | Remote antenna | Camera video GND | Camera video GND |
| 19 | - | - | - | - |
| 20 | AUX Detect | AUX Detect | ||
| 21 | AUX Left input | AUX Left input | ||
| 22 | MIC (-) | MIC (-) | ||
| 23 | Camera PGND | Camera PGND | ||
| 24 | Power GND | Power GND | ||
| Radio Antenna | No | Description | No | Description |
|---|---|---|---|---|
| 1 | Signal | 2 | Ground |
| Sirius Antenna | No | Description | No | Description |
|---|---|---|---|---|
| 1 | Signal | 2 | Ground |
| USB Connector | No | Description | No | Description |
|---|---|---|---|---|
| 1 | GND | 3 | USB D (-) | |
| 2 | USB D (+) | 4 | USB VDD |
