Repair Procedures: Inspection
WARNING: This page is about a different car, the 2018 Kia Cadenza. However, it is still accessible from the selected car via links, so may be relevant.

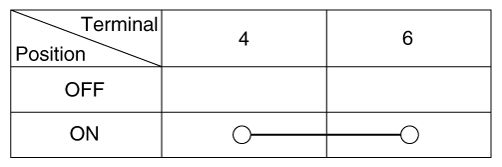

- Check for continuity between terminals. If the continuity is not as specified, replace the hazard lamp switch.

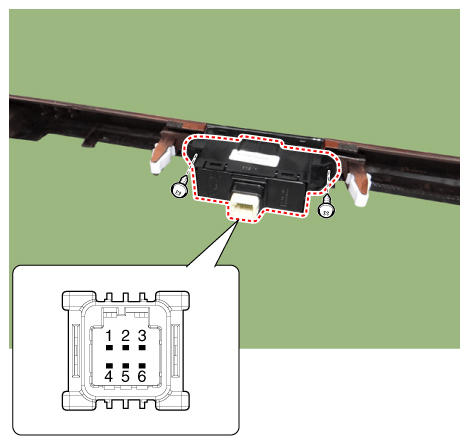

Courtesy of KIA MOTORS AMERICA, INC.
| No. |
Description |
| 1 |
Battery (+) |
| 2 |
Illumination (+) |
| 3 |
Hazard lamp indicator |
| 4 |
Hazard lamp switch signal |
| 5 |
Illumination (-) |
| 6 |
Ground |
Courtesy of KIA MOTORS AMERICA, INC.
