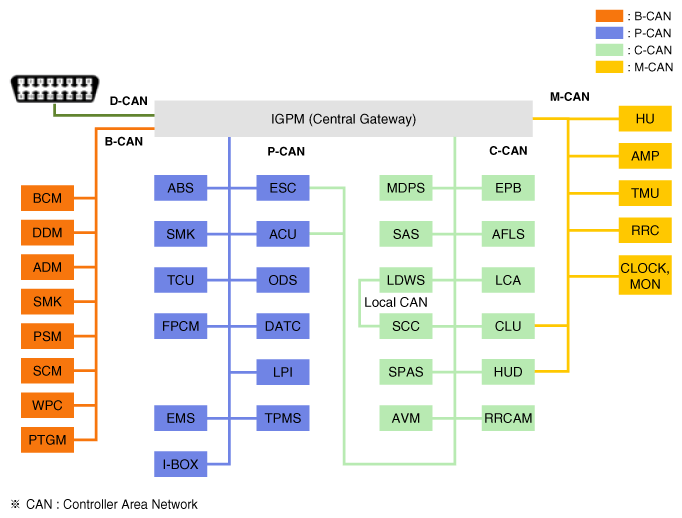

Communication Network Diagram
WARNING: This page is about a different car, the 2018 Kia Cadenza. However, it is still accessible from the selected car via links, so may be relevant.
| Abbreviation | Explanation |
|---|---|
| ACU | Airbag Control Unit |
| ADM | Assist Door Module |
| AMP | Amplifier |
| SCC | Smart Cruise Control |
| SVM | Surround View Monitor |
| IGPM | Integrated Gateway Power Control Module |
| B_CAN | Body Controller Area Network |
| BCM | Body Control Module |
| BSD | Blind Spot Detection |
| C_CAN | Chassis Controller Area Network |
| CLUM | Cluster Module |
| DATC | Dual Automatic Temperature Control |
| DDM | Driver Door Module |
| Display | Display Monitor |
| DSS | Driver Seat Switch |
| ECS | Electronic Control Suspension |
| EMS | Engine Management System |
| EPB | Electronic Parking Brake |
| EVP | Evaporative Vacuum Pump |
| FPCM | Fuel Pump Control Module |
| H/Unit | Head Unit |
| HSWS | Haptic Steering Warning System |
| HUD | Head Up Display |
| I-BOX | Telematics System |
| IDB | Integrated Dynamic Brake |
| LDWS | Lane Departure Warning System |
| M_CAN | Multimedia Controller Area Network |
| MDPS | Motor Driven Power Steering |
| MFS | Multi-Function Switch |
| ODS | Occupant Detection System |
| P_CAN | Powertrain Controller Area Network |
| PGS | Parking Guide System |
| PSB | Pre-Safe Seat Belt |
| PSM | Power Seat Module |
| PTLM | Power Trunk Lid Module |
| RRC | Rear Remote Control |
| SAS | Steering Angle Sensor |
| SCM | Steering Column Module |
| SJB | Smart Junction Box |
| SLB | Seat Lumbar Bolster |
| SMK | Smart Key Unit |
| SPAS | Smart Parking Assist System |
| SWRC | Steering Wheel Remote Controller |
| TCU | Transmission Control Unit |
| TPMS | Tire Pressure Monitoring System |
| VDC | Vehicle Dynamic Control |
| WPC | Wireless Power Charger |
