Chart 5

WARNING: This page is about a different car, the 2017 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

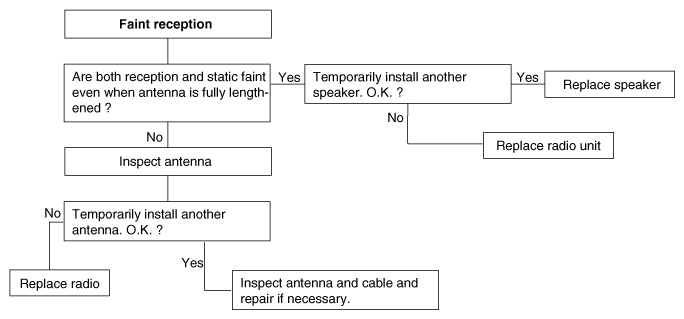

Fig 1: Troubleshooting Problem Areas Procedure Chart 5 (Faint Reception)
G12278121Courtesy of KIA MOTORS AMERICA, INC.
