Chart 2

WARNING: This page is about a different car, the 2017 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

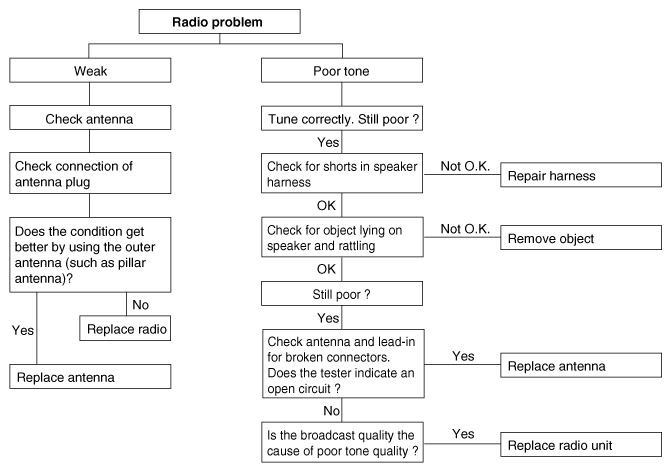

Fig 1: Troubleshooting Problem Areas Procedure Chart 2 (Radio)
G12278115Courtesy of KIA MOTORS AMERICA, INC.
