Repair Procedures: Inspection

WARNING: This page is about a different car, the 2017 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the crash pad lower panel.
(Refer to Body - "CRASH PAD LOWER PANEL ")
Remove the crash pad lower switch (A) after loosening the mounting screws.

Fig 1: Locating Crash Pad Lower Switch Mounting With Screws
Courtesy of KIA MOTORS AMERICA, INC.
Remove the rheostat switch connector (A).

Fig 2: Locating Rheostat Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Check for intensity of rheostat switch. If the light intensity of the lamps changes smoothly without any flickering when the rheostat is turned on, it can be assumed that the rheostat is operating normally.

Fig 3: Rheostat Switch With Connector End View
Courtesy of KIA MOTORS AMERICA, INC.

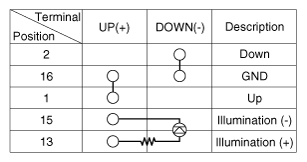

Fig 4: Rheostat Switch Terminal Continuity Chart
Courtesy of KIA MOTORS AMERICA, INC.
