Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear heater & A/C unit.

    (Refer to Rear Heater - "REAR HEATER UNIT ")

  2. Disconnect the rear mode control actuator connector (A) and then remove the rear mode control actuator (B) after loosening the screws.

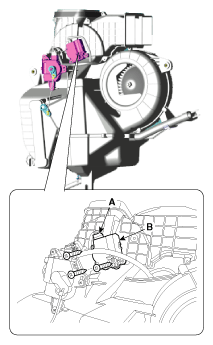

    Fig 1: Locating Rear Mode Control Actuator With Screws
    G12272826Courtesy of KIA MOTORS AMERICA, INC.
  3. Install in the reverse order of removal.
