Section 134 (Surround View Monitor System Diagnosis)
>>
DTC B16B7-00: Front Camera Input Error
>>
Components Location
Components Location
WARNING:
This page is about a different car, the 2018 Kia Cadenza. However, it is still accessible from the selected car via links, so may be relevant.

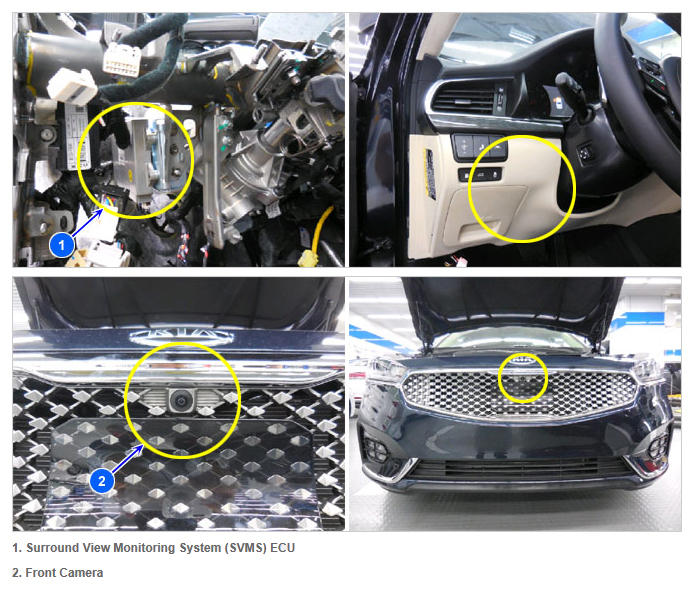

Fig 1: Surround View Monitoring System (SVMS) ECU & Front Camera Components Location
Courtesy of KIA MOTORS AMERICA, INC.
