Repair Procedures: Replacement

WARNING: This page is about a different car, the 2018 Kia Cadenza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the glove box housing.
(Refer to Crash Pad - "GLOVE BOX HOUSING ")

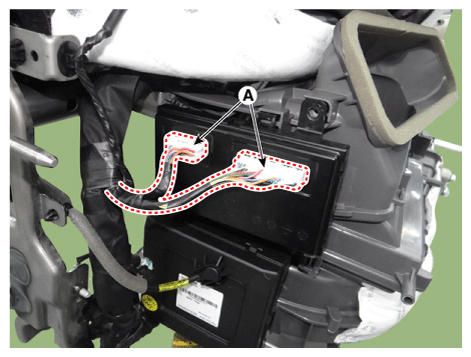

Disconnect the heater control unit connectors (A).

Fig 1: Locating Heater Control Unit Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Remove the heater control unit (A) after loosening the screws.

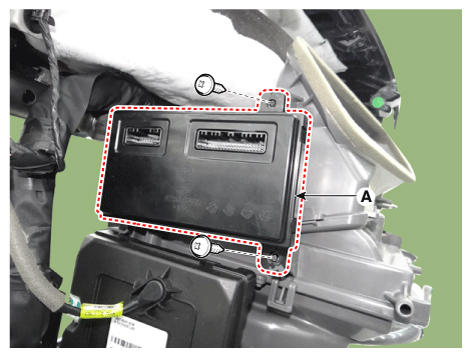

Fig 2: Remove Heater Control Unit Screws (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

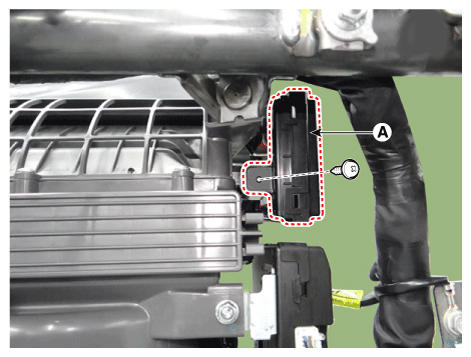

Fig 3: Remove Heater Control Unit Screws (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
