Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Kia Cadenza. However, it is still accessible from the selected car via links, so may be relevant.

Switch "OFF" ignition and disconnect the negative (-) battery cable.
Remove the crash pad lower panel.
(Refer to Body (Interior and Exterior) - "CRASH PAD LOWER PANEL ")
Remove the knee airbag.
(Refer to Restraint - "KNEE AIRBAG (KAB) MODULE ")
Disconnect the stop lamp switch connector (A).
Pull the locking plate (B) as indicated by the arrow.
Turn brake switch 45° counterclockwise and remove it.

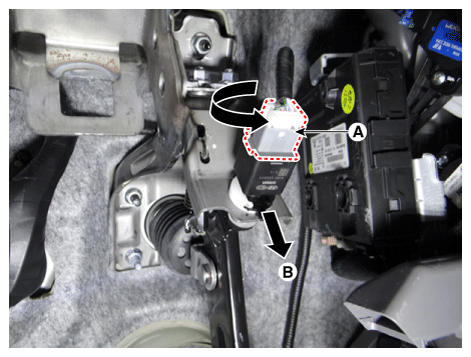

Fig 1: Disconnecting Stop Lamp Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.

Inspect the removed stop lamp switch according to the below procedures.

Check for proper connection with terminal part.
- A confirmation can be made to see if the connector has been secured properly and if a connection mark is present.

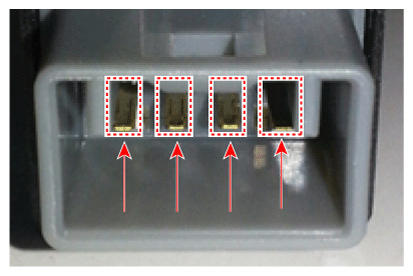

Fig 2: Inspecting Removed Stop Lamp Switch For Normal Connection With Terminal Part
Courtesy of KIA MOTORS AMERICA, INC.
Perform the inspection of parts resistance.

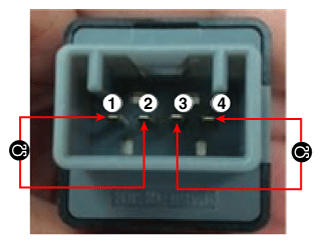

Fig 3: Inspecting Removed Stop Lamp Switch Parts Resistance

Courtesy of KIA MOTORS AMERICA, INC.

Resistance (Ω)	No. 3-4	No. 1-2
Plunger depressed (switch turned OFF)	Infinite	0
Plunger released (switch turned ON)	0	Infinite
