Repair Procedures: Installation

WARNING: This page is about a different car, the 2018 Kia Cadenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install in the reverse order of removal.
  2. Using the SST (09581-11000), install the brake caliper assembly.

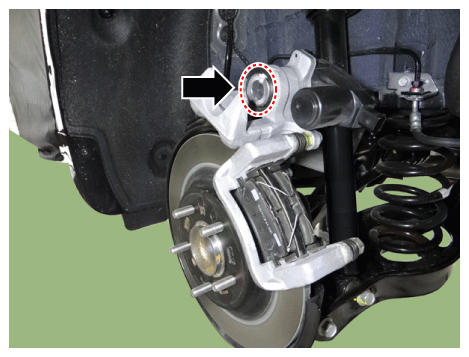

    Fig 1: Installing Brake Caliper Assembly
    G12294458Courtesy of KIA MOTORS AMERICA, INC.
