Caliper Assembly

WARNING: This page is about a different car, the 2018 Kia Cadenza. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front wheel and tire (A) from front hub.
Tightening torque:

88.2 - 107.8 N.m (9.0 - 11.0 kgf.m, 65.0 - 79.5 lb.ft)

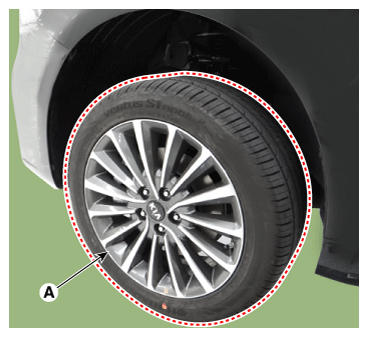

Fig 1: Locating Front Wheel And Tire
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Be careful not to damage the hub bolts when removing the front wheel and tire (A).
Remove the brake hose bracket bolt (A).

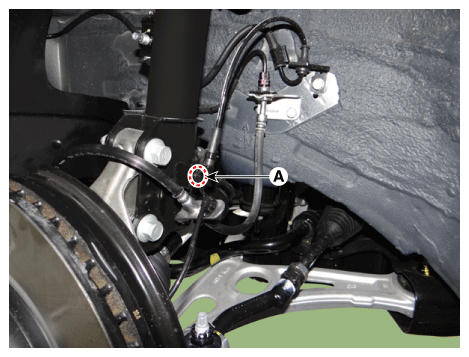

Fig 2: Locating Brake Hose Bracket Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the guide rod bolt (B) and then pivot the caliper body (A) up out of the way.
Tightening torque:

21.6 - 31.4 N.m (2.2 - 3.2 kgf.m, 15.9 - 23.1 lb.ft)

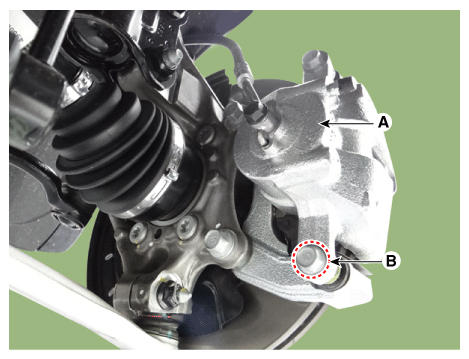

Fig 3: Locating Guide Rod Bolt And Caliper Body
Courtesy of KIA MOTORS AMERICA, INC.
Remove the pad return spring (A) and then separate the brake pad (B).

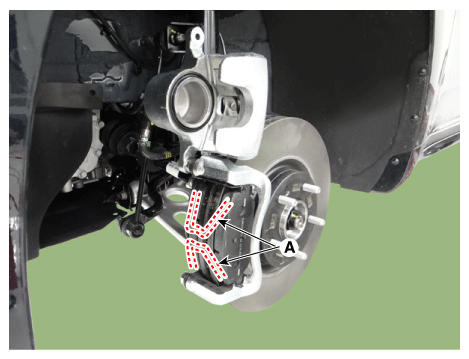

Fig 4: Locating Pad Return Spring
Courtesy of KIA MOTORS AMERICA, INC.

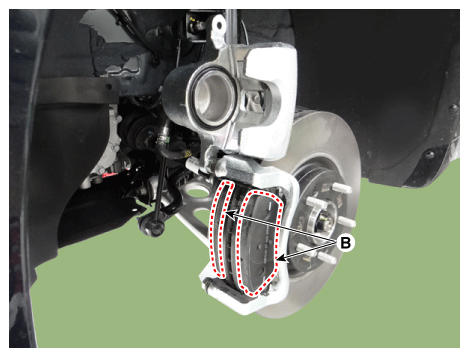

Fig 5: Locating Brake Pad
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the brake hose bolt (A).
Loosen the bolt (B) and then remove the caliper carrier.
Tightening torque:
1. 24.5 - 29.4 N.m (2.5 - 3.0 kgf.m, 18.1 - 21.7 lb.ft)
2. 78.5 - 98.1 N.m (8.0 - 10.0 kgf.m, 57.9 - 72.3 lb.ft)

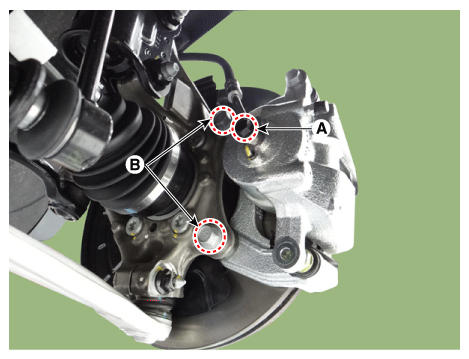

Fig 6: Locating Caliper Carrier Bolt
Courtesy of KIA MOTORS AMERICA, INC.
