Driver Power Window Switch

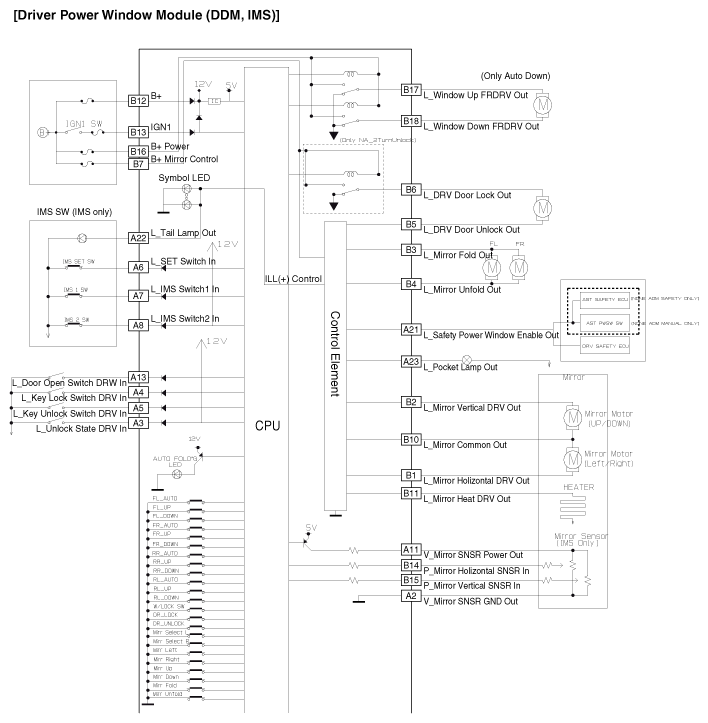

Fig 1: Driver Power Window Switch Circuit Diagram (IMS; 1 Of 2)
G12272370Courtesy of KIA MOTORS AMERICA, INC.

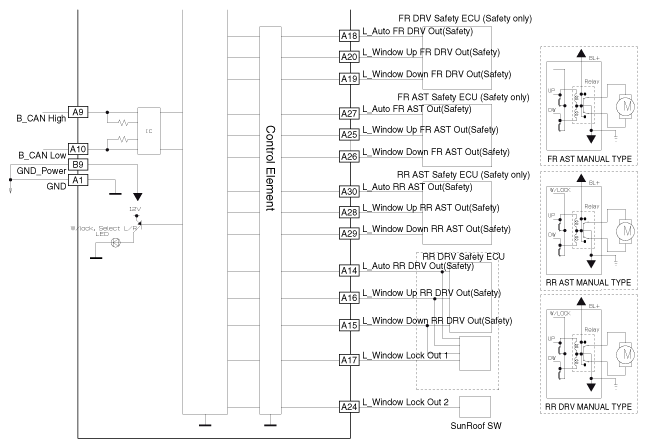

Fig 2: Driver Power Window Switch Circuit Diagram (IMS; 2 Of 2)
G12272371Courtesy of KIA MOTORS AMERICA, INC.
