Home >> Kia >> 2018 >> Sedona L >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Power Sliding Door System >> Components And Components Location >> Components

Components And Components Location: Components

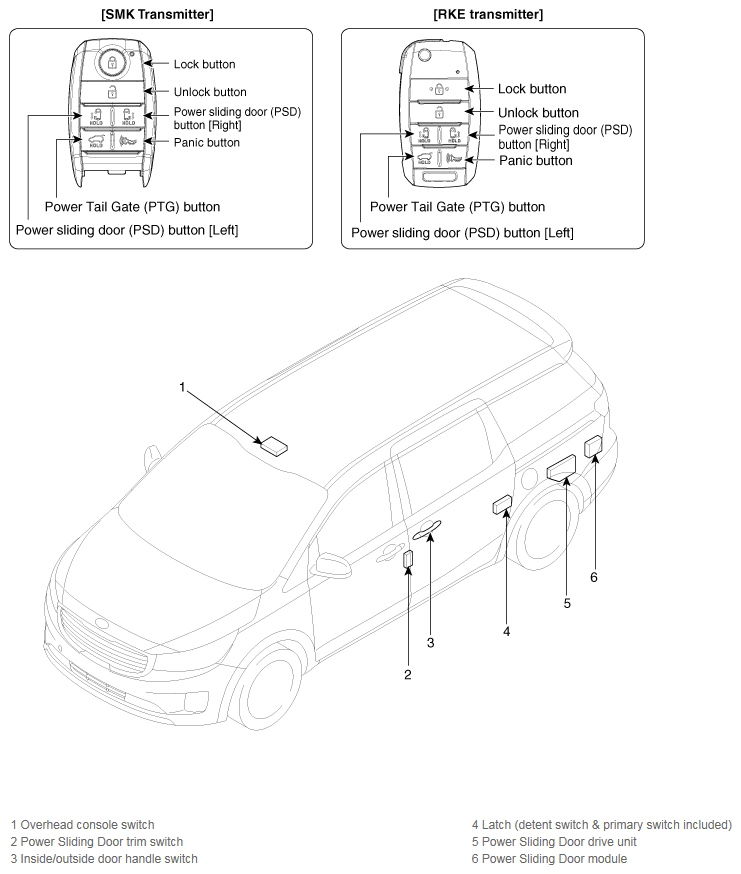

Fig 1: Power Sliding Door Device Components Location

G12272326

Courtesy of KIA MOTORS AMERICA, INC.
