Repair Procedures: Removal: Notes

WARNING: This page is about a different car, the 2018 Kia Cadenza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.

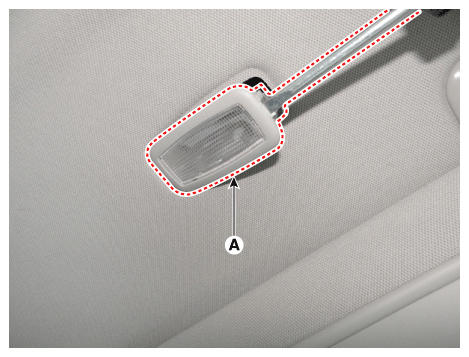

Detach the vanity lamp (A) using a flat-tip screwdriver.

Fig 1: Detach Vanity Lamp Using Flat-Tip Screwdriver
Courtesy of KIA MOTORS AMERICA, INC.

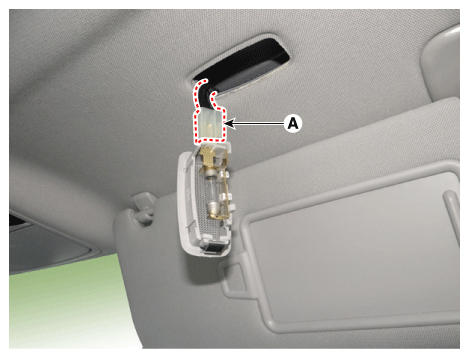

Disconnect the vanity lamp connector (A)

Fig 2: Locating Vanity Lamp Connector

Courtesy of KIA MOTORS AMERICA, INC.
