Repair Procedures: Removal: Notes

WARNING: This page is about a different car, the 2018 Kia Cadenza. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to prevent hand injuries.
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

Disconnect the negative (-) battery terminal.

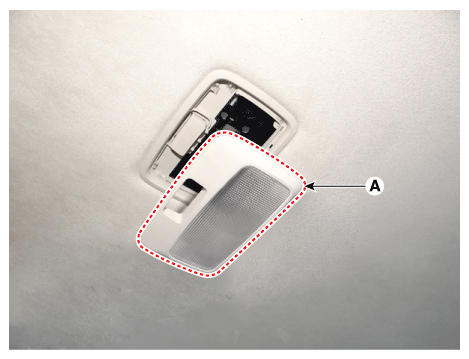

Using a screwdriver or remover, separate the room lamp lens (A) from the room lamp.

Fig 1: Separate Room Lamp Lens
Courtesy of KIA MOTORS AMERICA, INC.

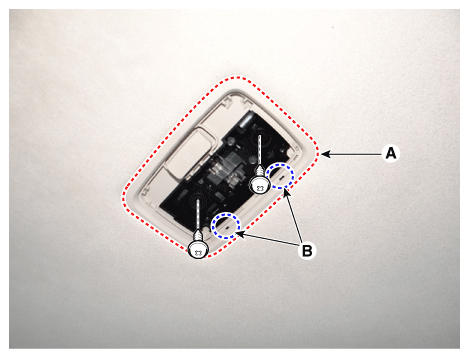

Remove the room lamp (A) after loosening the screws.

Fig 2: Locating Room Lamp Screws
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- When removing the room lamp, insert the tool in the correct direction (B).
- When inserting the tool in the opposite direction, take caution as the room lamp may be damaged.

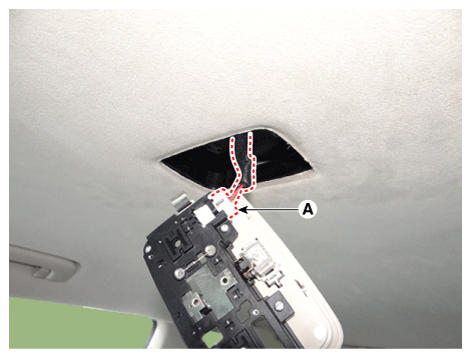

Remove the room lamp assembly after disconnecting the room lamp connector (A).

Fig 3: Locating Room Lamp Connector
Courtesy of KIA MOTORS AMERICA, INC.
