Multi Fuse

WARNING: This page is about a different car, the 2018 Kia Cadenza. However, it is still accessible from the selected car via links, so may be relevant.

Engine room fuse is compact to maximize space.

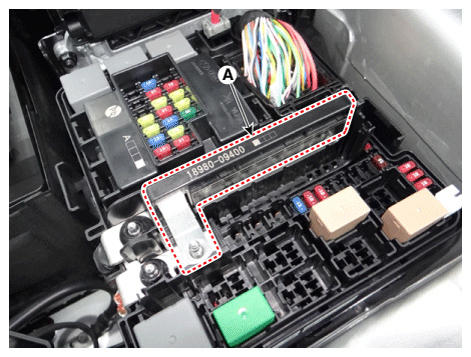

Fig 1: Locating Engine Room Multi Fuse With Nut

Courtesy of KIA MOTORS AMERICA, INC.

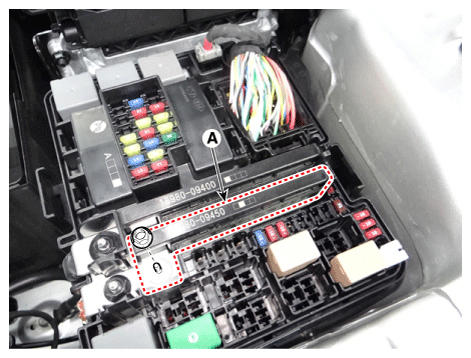

Fig 2: Locating Engine Room Multi Fuse

Courtesy of KIA MOTORS AMERICA, INC.

Information

The entire multi fuse (A) has to be replaced even if only one fuse is damaged.
When replacing it, refer to Components And Components Location diagram to check fuse capacities and circuit arrangement.
Use the multi fuse of the exact fuse capacity for each circuit.
