Antenna Status Check

WARNING: This page is about a different car, the 2017 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
Select the "Antenna Status Check".

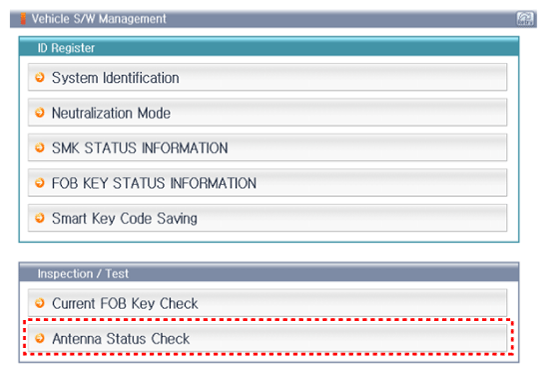

Fig 1: Screen Display - Select Antenna Status Check
Courtesy of KIA MOTORS AMERICA, INC.
After IG ON, select the "Antenna Status Check".

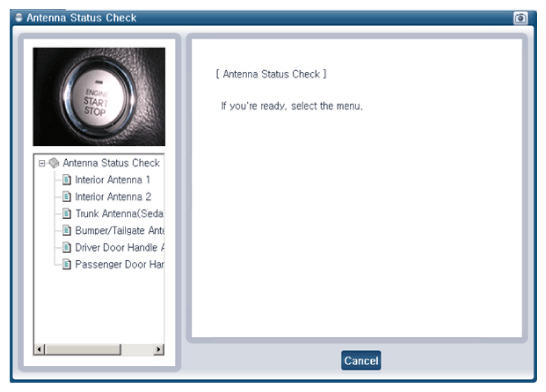

Fig 2: Screen Display - Select Antenna Status Check (After IG ON)
Courtesy of KIA MOTORS AMERICA, INC.
Set the smart key near the corresponding antenna and operate it using GDS.

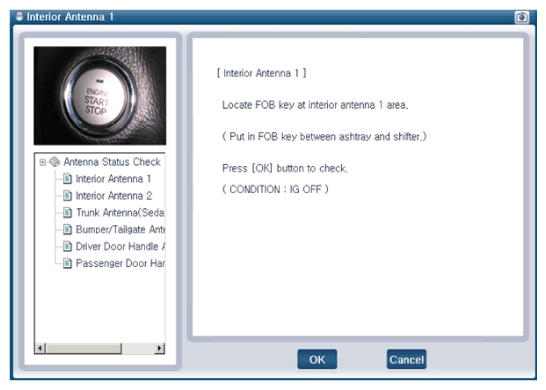

Fig 3: Screen Display - Interior Antenna 1
Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Screen Display - Interior Antenna 2
Courtesy of KIA MOTORS AMERICA, INC.
If the smart key operates normally, it means that the corresponding antenna, smart key (transmission & reception) and exterior receiver are also normal.
Antenna status
- INTERIOR Antenna 1
- INTERIOR Antenna 2
- INTERIOR Antenna 3
- BUMPER/Trunk Antenna
- DRV_DR Antenna
- AST_DR Antenna
