Components And Components Location: Components

WARNING: This page is about a different car, the 2017 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

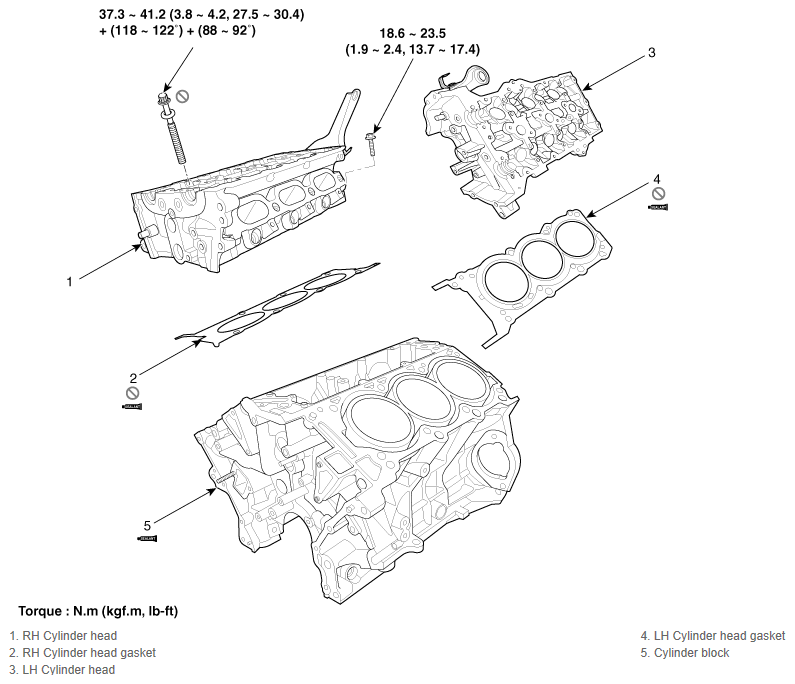

Fig 1: Cylinder Head Assembly Components Location With Torque Specification (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

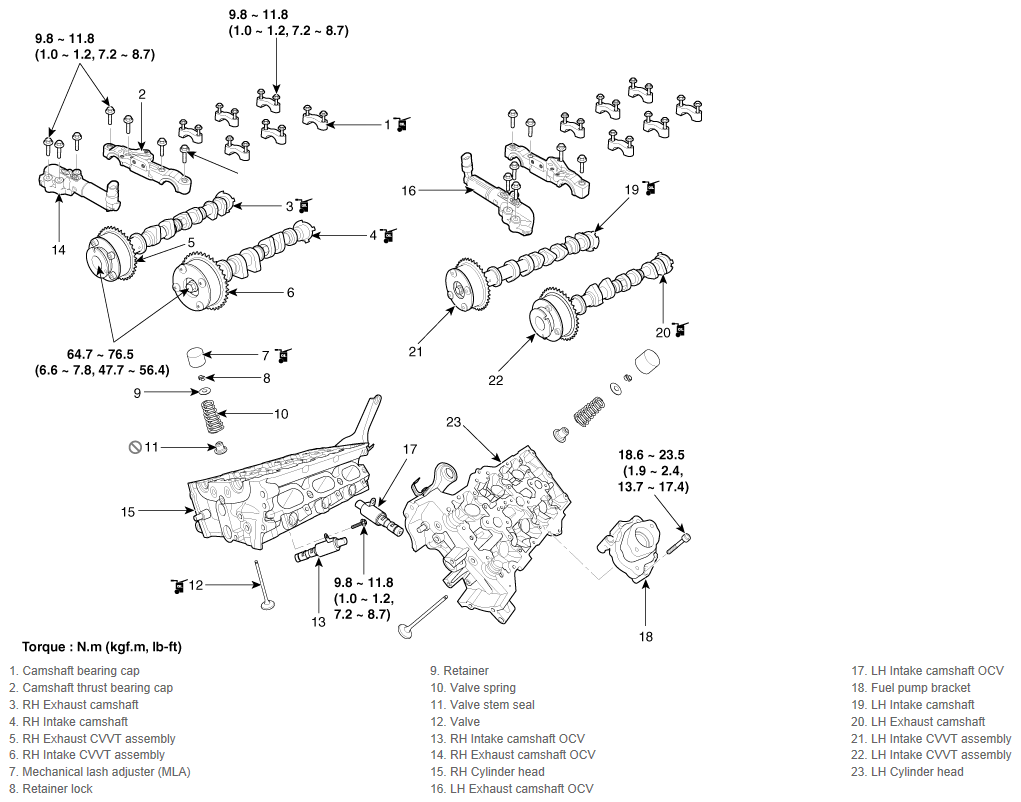

Fig 2: Cylinder Head Assembly Components Location With Torque Specification (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
