Components And Components Location: Components

WARNING: This page is about a different car, the 2017 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

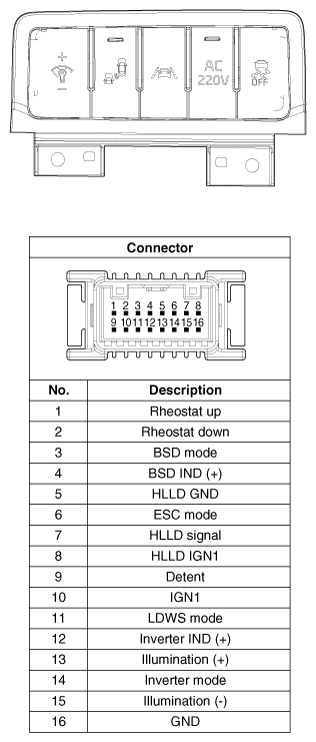

Fig 1: Rheostat Switch Components Location & Pin Description
G12272216Courtesy of KIA MOTORS AMERICA, INC.
