Repair Procedures: Installation

WARNING: This page is about a different car, the 2018 Kia Cadenza. However, it is still accessible from the selected car via links, so may be relevant.

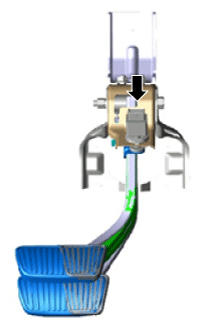

Fix the brake pedal arm and fully insert the stop lamp switch until the contact point is not visible.

Fig 1: Inserting Stop Lamp Switch
Courtesy of KIA MOTORS AMERICA, INC.

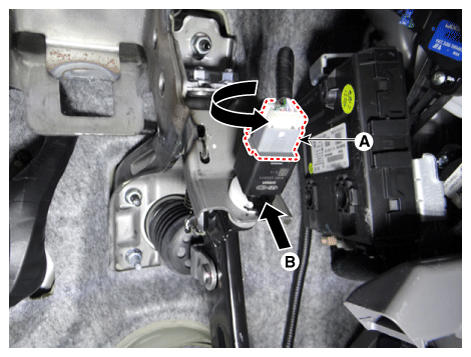

After inserting, turn the stop switch (A) 45° clockwise, and then push in the locking plate (B).

Fig 2: Turning Stop Switch
Courtesy of KIA MOTORS AMERICA, INC.

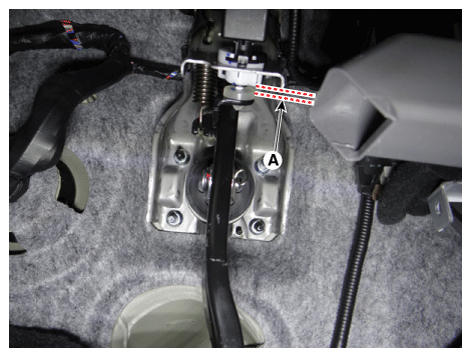

Check the gap (A) between stop lamp switch and bracket.
Stop lamp clearance:

1.0 - 2.0 mm (0.04 - 0.08 in.)

Fig 3: Checking Gap Between Stop Lamp Switch And Bracket
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: If the gap between stop lamp switch and bracket is not between 1.0 - 2.0 mm (0.04 - 0.08 in.), perform the above process again.
Connect the stop lamp switch connector.
Install the lower crash pad.
(Refer to Body - "CRASH PAD ")
