Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Kia Cadenza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the brake fluid level switch connector (A) and then remove the reservoir cap.

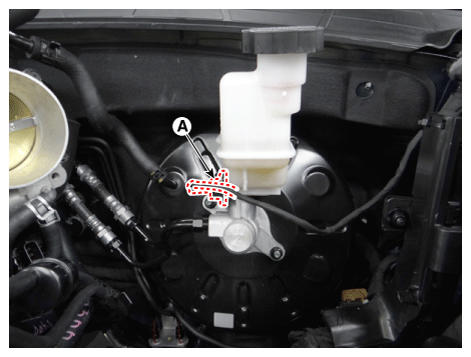

Fig 1: Locating Brake Fluid Level Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the front/rear wheel & tire.

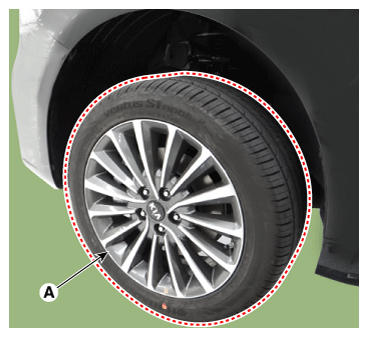

Fig 2: Locating Front/Rear Wheel & Tire
Courtesy of KIA MOTORS AMERICA, INC.
Remove the brake hose clip (A).
Disconnect the brake tube by loosening the tube flare nut (B).
Tightening torque:

13.7 - 16.7 N.m (1.4 - 1.7 kgf.m, 10.1 - 12.3 lb.ft)

[Front]

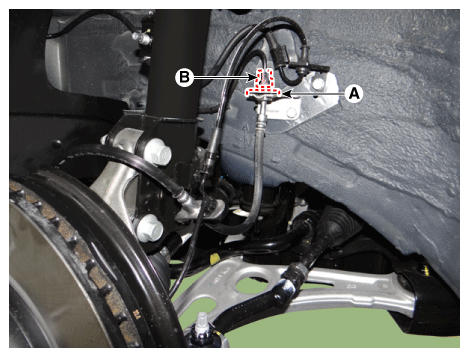

Fig 3: Locating Tube Flare Nut And Brake Hose Clip - Front
Courtesy of KIA MOTORS AMERICA, INC.

[Rear]

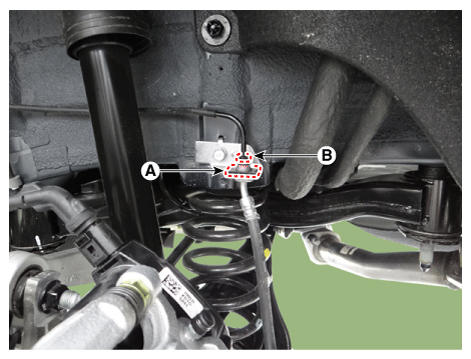

Fig 4: Locating Tube Flare Nut And Brake Hose Clip - Rear
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the brake hose bolt (A) from the caliper and then disconnect the hose.
[Front]

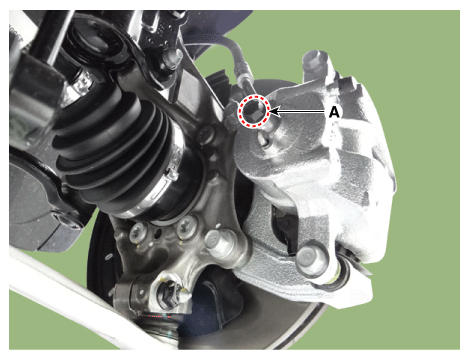

Fig 5: Locating Brake Hose Bolt (Front)
Courtesy of KIA MOTORS AMERICA, INC.

[Rear]

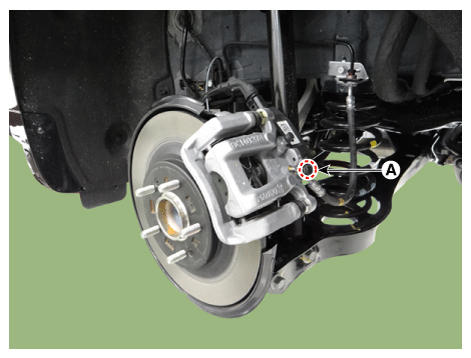

Fig 6: Locating Brake Hose Bolt (Rear)
Courtesy of KIA MOTORS AMERICA, INC.
