DTC P0083: Intake Valve Control Solenoid Circuit-High (Bank 2)
>>
Specification
>>
Signal Waveform & Data
Signal Waveform & Data

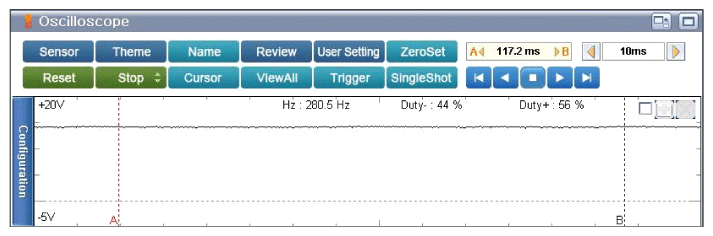

Fig 1: Screen Display - Normal Waveforms Of OCV At Engine Idle
Courtesy of KIA MOTORS AMERICA, INC.

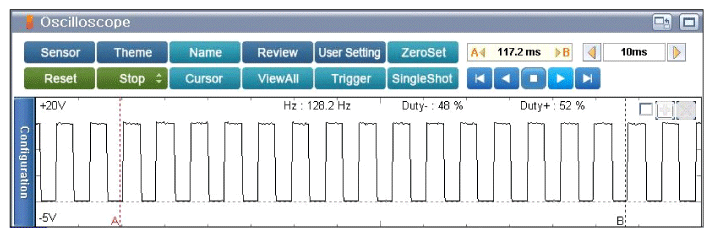

Fig 2: Screen Display - Normal Waveforms Of OCV At Approx 2000 RPM
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
