Signal Waveform & Data

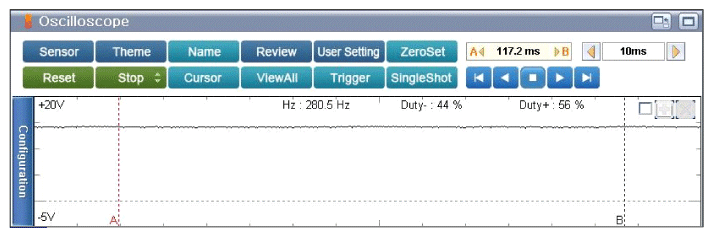

Fig 1: Screen Display - Normal Waveforms Of OCV At Engine Idle
G12276426Courtesy of KIA MOTORS AMERICA, INC.

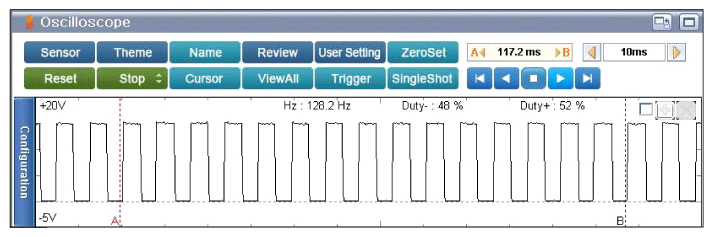

Fig 2: Screen Display - Normal Waveforms Of OCV At Approx 2000 RPM
G12276427Courtesy of KIA MOTORS AMERICA, INC.
