Component Location

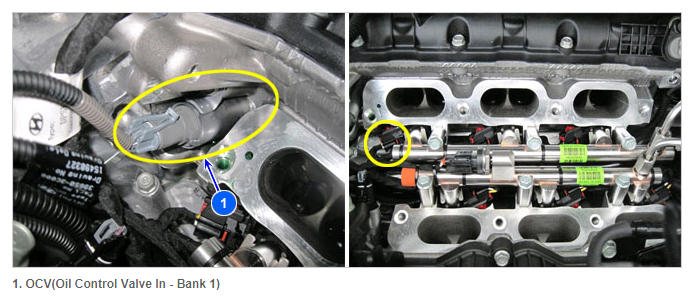

Fig 1: OCV (Oil Control Valve Intake - Bank 1) Component Location
G12276404Courtesy of KIA MOTORS AMERICA, INC.
