Repair Procedures: Removal: Battery

Turn the ignition switch OFF.

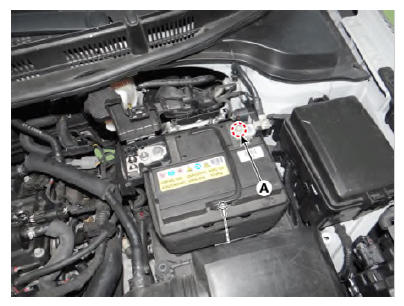

Disconnect the battery negative (-) terminal (A).
Battery negative (-) terminal tightening nut:

8.0 - 10.0 N.m (0.8 - 1.0 kgf.m, 5.9 - 7.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

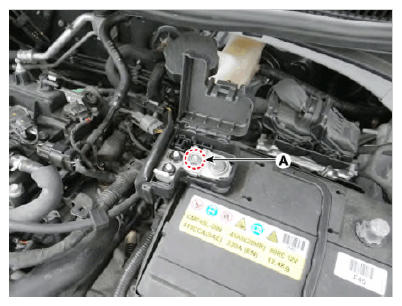

Disconnect the battery positive (+) terminal (A).
Battery positive (+) terminal tightening nut:

8.0 - 10.0 N.m (0.8 - 1.0 kgf.m, 5.9 - 7.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

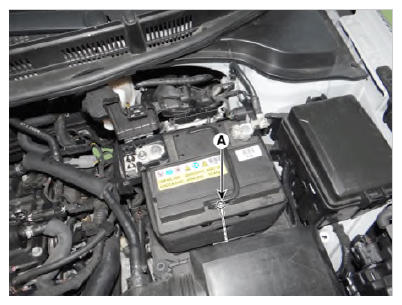

Remove the battery mounting bracket after loosening the mounting bolt (A).

Courtesy of KIA MOTORS AMERICA, INC.

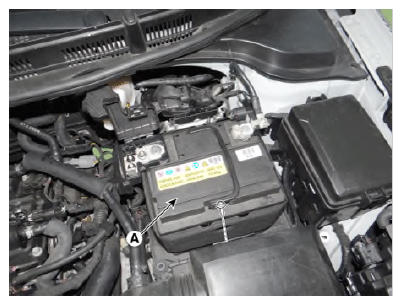

Remove the battery (A).
Battery mounting bracket mounting bolt:

9.0 - 14.0 N.m (0.9 - 1.4 kgf.m, 6.6 - 10.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
