Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the air cleaner.

    (Refer to Engine Mechanical System - " AIR CLEANER  ")

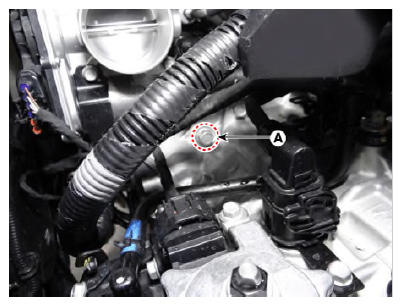

  3. Remove the starter upper bolt (A).
    G12576388Courtesy of KIA MOTORS AMERICA, INC.
  4. Lift the vehicle.
  5. Remove the engine room under cover.

    (Refer to Engine Mechanical System - " ENGINE ROOM UNDER COVER  ")

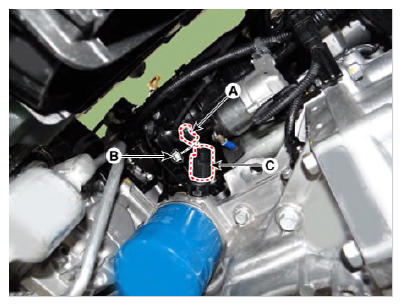

  6. Remove the stater solenoid "B" terminal mounting nut (B), and then disconnect the stater cable and ST connector (A).
  7. Disconnect the oil pressure switch connector (C).

    Starter mounting bolt:

    49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

    G12576389Courtesy of KIA MOTORS AMERICA, INC.

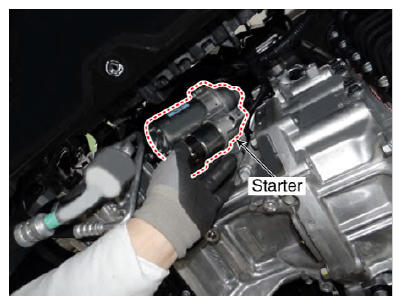

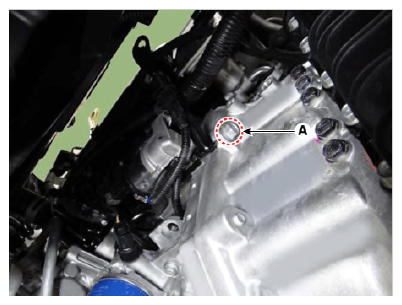

  8. Remove the starter after loosening the mounting lower bolt (A).
    G12576390Courtesy of KIA MOTORS AMERICA, INC.
    G12576391Courtesy of KIA MOTORS AMERICA, INC.
