Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Ignition switch "OFF"
  2. Connect KDS/GDS to Data Link Connector (DLC).
  3. Select the "Vehicle S/W Management" about related DTC with KDS/GDS.
  4. Perform "Oil-pressure Characteristics BackUP & Input (TCU Replacement)" and go to "Verification of Repair " procedure.
 Figures below

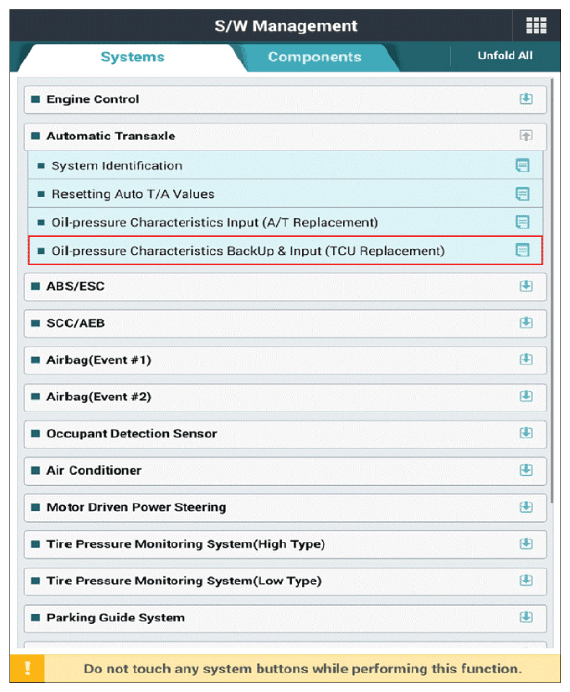

G12585582Courtesy of KIA MOTORS AMERICA, INC.

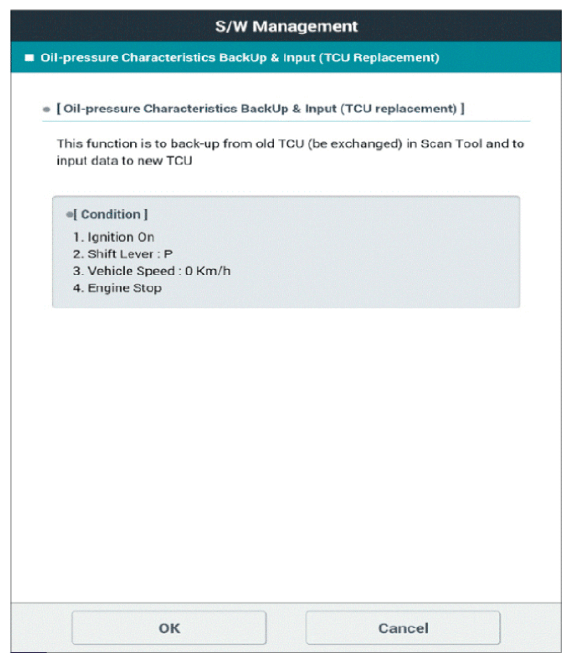

G12585583Courtesy of KIA MOTORS AMERICA, INC.

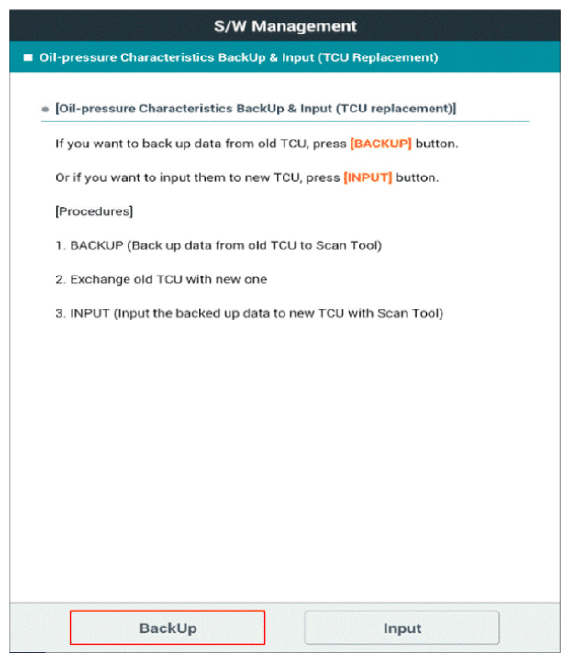

G12585584Courtesy of KIA MOTORS AMERICA, INC.

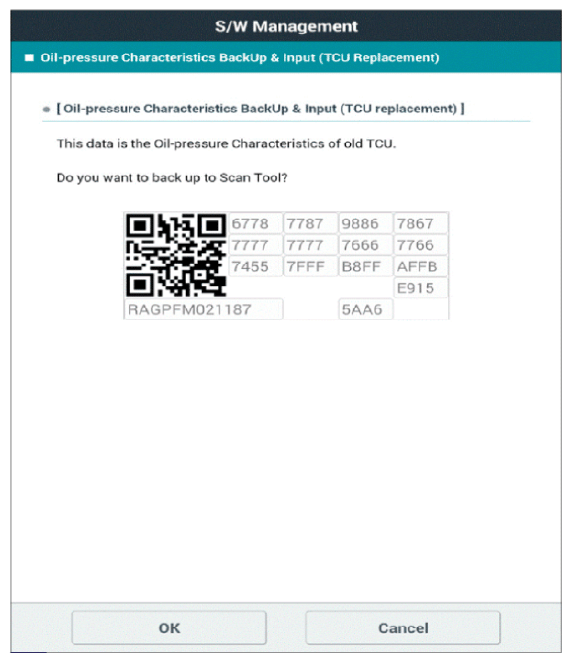

G12585585Courtesy of KIA MOTORS AMERICA, INC.

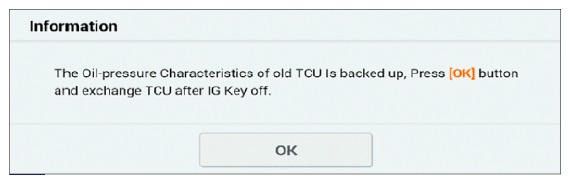

G12585586Courtesy of KIA MOTORS AMERICA, INC.

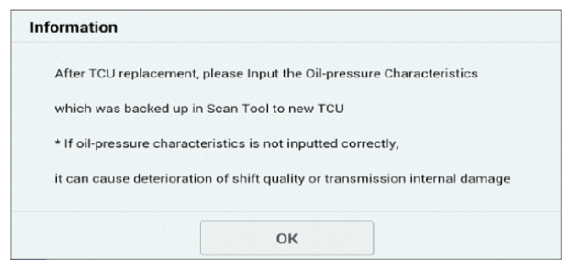

G12585587Courtesy of KIA MOTORS AMERICA, INC.

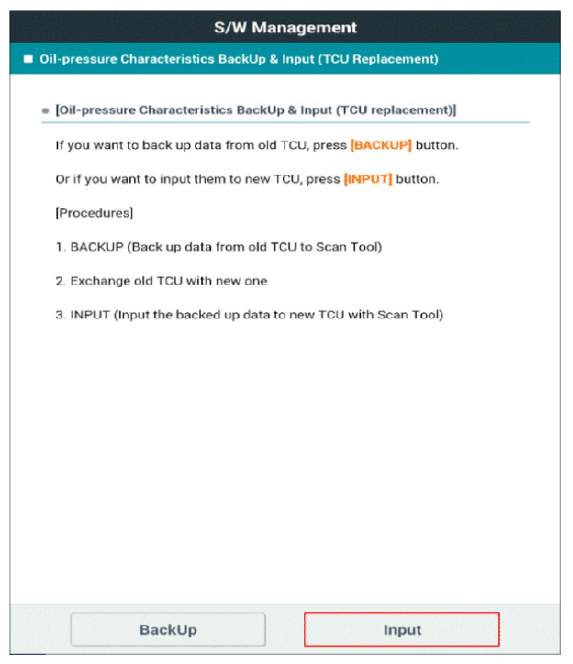

G12585588Courtesy of KIA MOTORS AMERICA, INC.

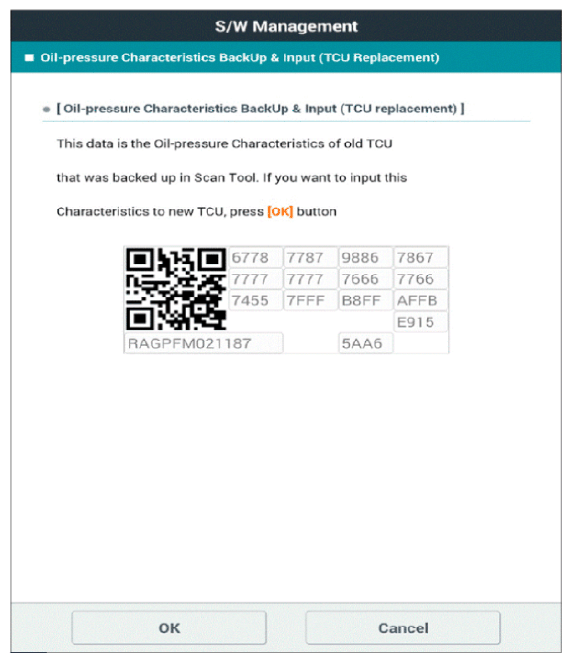

G12585589Courtesy of KIA MOTORS AMERICA, INC.

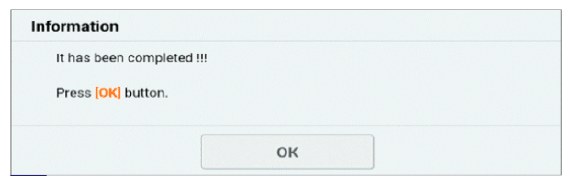

G12585590Courtesy of KIA MOTORS AMERICA, INC.
