Monitor DTC Status

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS/GDS.

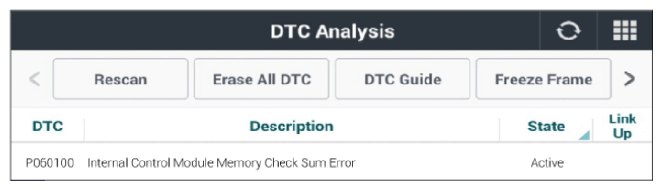

 Figure below
G12585581Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

History/Pending Fault
