Home >> Kia >> 2018 >> Rio LX, 4D Hatchback, Automatic Trans >> Repair and Diagnosis >> Steering >> Steering Column >> Motor Driven Power Steering >> Schematic Diagrams >> Notes

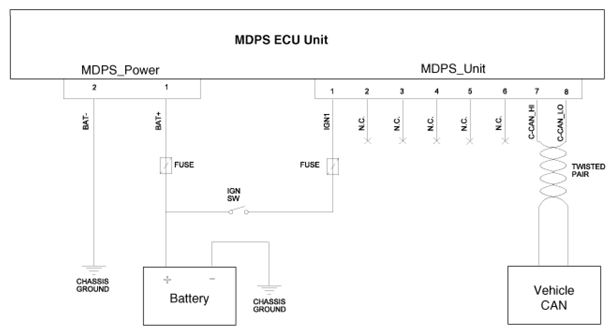

Schematic Diagrams: Notes

G12578464Courtesy of KIA MOTORS AMERICA, INC.
