Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal.

NOTE: Matters that require attention when installing the shift cable.
[A Type]

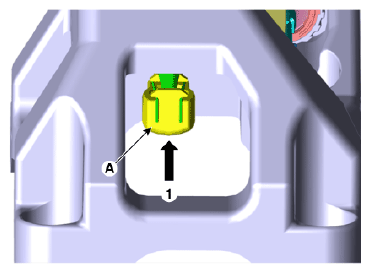

Push the cable end to shift lever rod with supporting with finger.

Courtesy of KIA MOTORS AMERICA, INC.

With holding side of cable end eye or cable rod, push the shift lever rod into shift cable eye end until hearing clicking sound.

Courtesy of KIA MOTORS AMERICA, INC.

After assembling, make sure that this part is extruded.

Courtesy of KIA MOTORS AMERICA, INC.

[B Type]

Install the shift cable (A).

Courtesy of KIA MOTORS AMERICA, INC.
