Manual Transaxle Oil Level Check

WARNING: This page is about a different variant/trim than selected.

Stop the engine and then raise the vehicle using the lift.

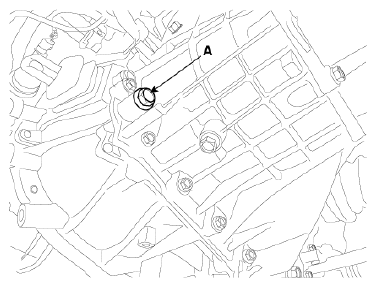

Remove the oil filler plug (A).

Courtesy of KIA MOTORS AMERICA, INC.

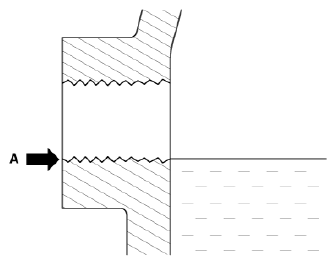

Check the condition of the oil and make sure that it is at the proper level (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install the oil filler plug (A).
Tightening torque:

58.9 - 78.5 N.m (6.0 - 8.0 kgf.m, 43.4 - 57.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The existing oil filler plug gasket must be replaced with new one. (Do not reuse it.)
