Repair Procedures: Removal

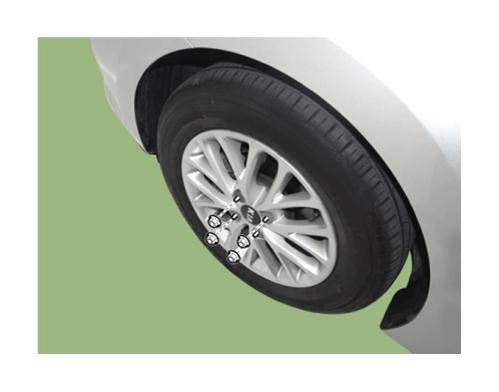

  1. Remove the front wheel& tire.

    Tightening torque:

    107.9 -127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

    G12578817Courtesy of KIA MOTORS AMERICA, INC.

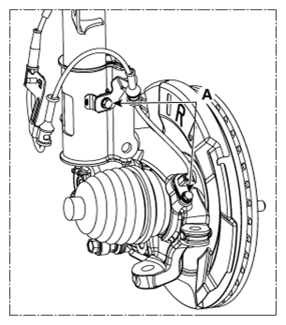

  2. Loosen the bolt (A) and then disconnect the wheel speed sensor.

    Tightening torque:

    7.8 -11.8 N.m (0.8 -1.2 kgf.m, 5.8 -8.7 lb.ft)

    G12578818Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the front wheel guard.

    (Refer to Body - " FRONT WHEEL GUARDS  ")

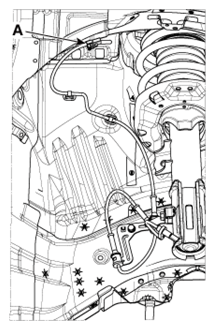

  4. Disconnect the wheel speed sensor connector (A).
    G12578819Courtesy of KIA MOTORS AMERICA, INC.
  5. Install in the reverse order of removal.
