Tailgate Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear transverse trim.

    (Reger to Body - "Rear Transverse Trim")

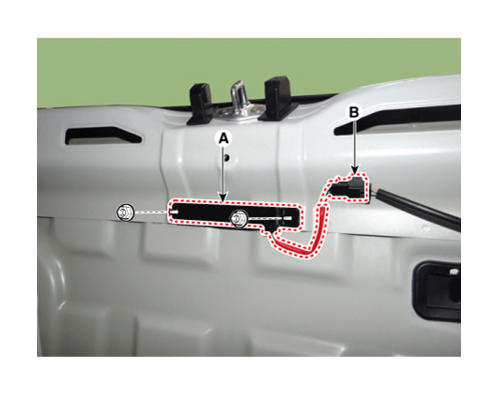

  3. Remove the tailgate antenna (A) after loosening the mounting nuts and disconnecting the connector (B).
    G12580191Courtesy of KIA MOTORS AMERICA, INC.
