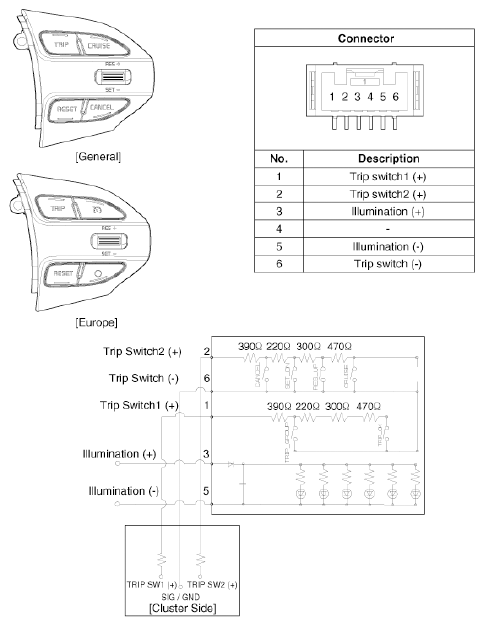

Circuit Diagram
 Courtesy of KIA MOTORS AMERICA, INC.
|

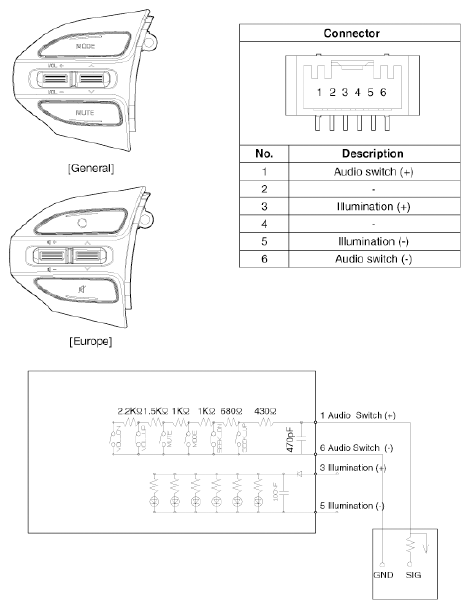

[Audio]
 Courtesy of KIA MOTORS AMERICA, INC.
|

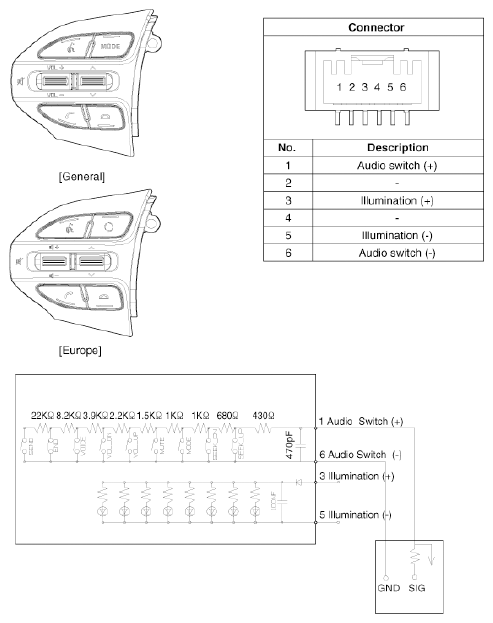

[Audio + Bluetooth]
 Courtesy of KIA MOTORS AMERICA, INC.
|

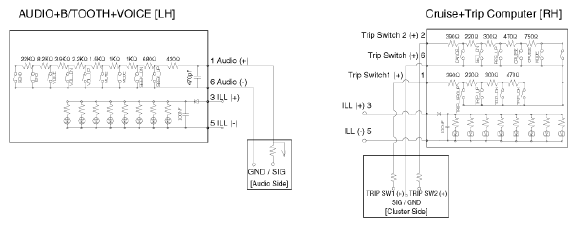

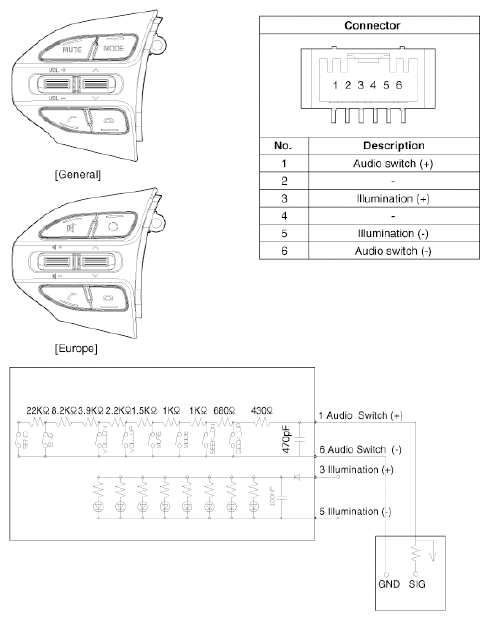

[Audio + Bluetooth + Voice]
 Courtesy of KIA MOTORS AMERICA, INC.
|

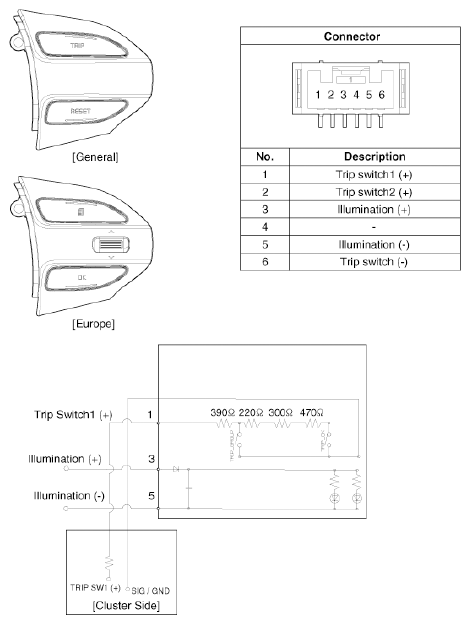

[Trip]
 Courtesy of KIA MOTORS AMERICA, INC.
|

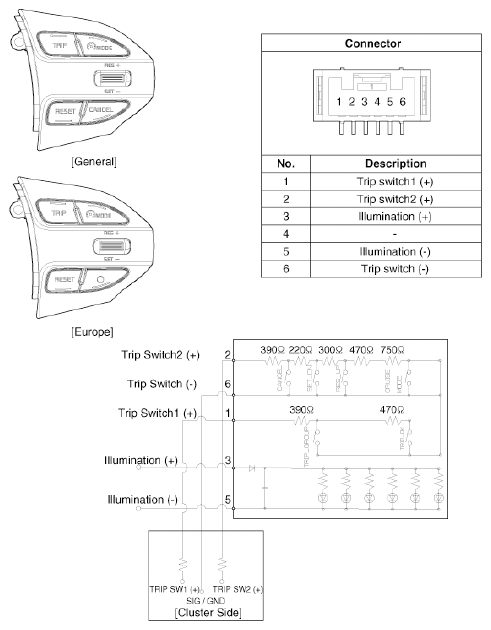

[Trip + ACC (2 Button)]
 Courtesy of KIA MOTORS AMERICA, INC.
|

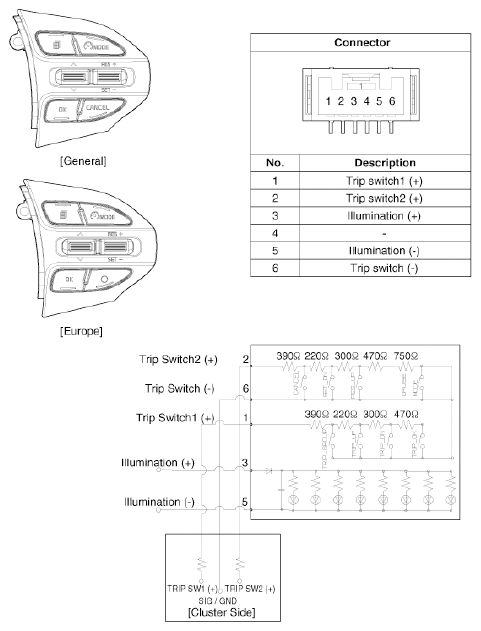

[Trip + ACC + SLD (2 Button)]
 Courtesy of KIA MOTORS AMERICA, INC.
|

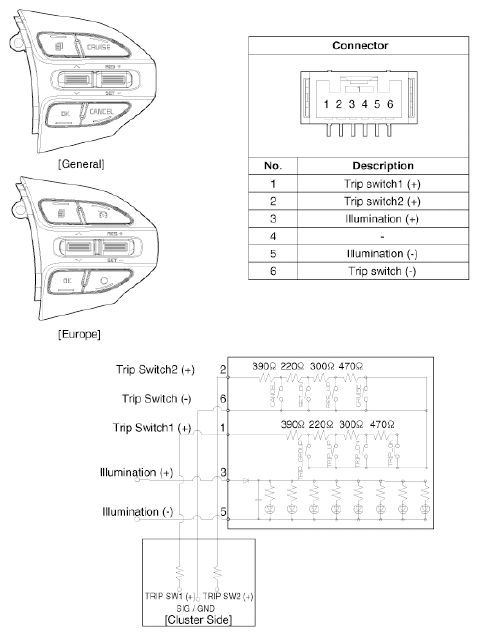

[Trip + ACC (4 Button)]
 Courtesy of KIA MOTORS AMERICA, INC.
|
[Trip + ACC + SLD (4 Button)]
 Courtesy of KIA MOTORS AMERICA, INC.
|
