Repair Procedures: Inspection

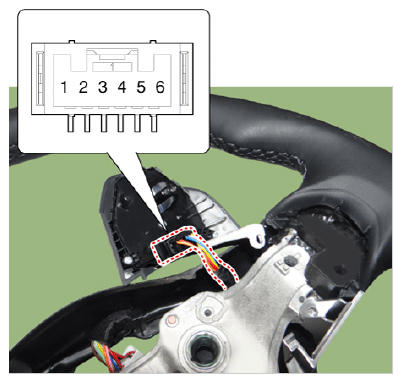

  1. Check for resistance between terminals in each switch position (RH).
    G12576438Courtesy of KIA MOTORS AMERICA, INC.
    Switch Connector terminal Resistance (±3%)
    Cancel 2-6 390 Ω
    SET - 610 Ω
    RES + 910 Ω
    Cruise ON/OFF 1.38 kΩ
    Cruise & Speed Limit ON/OFF Cruise Mode 2.13 kΩ
