Repair Procedures: Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - " AIR CLEANER  ")

  2. Remove the battery and battery tray.

    (Refer to Engine Electrical System - " BATTERY  ")

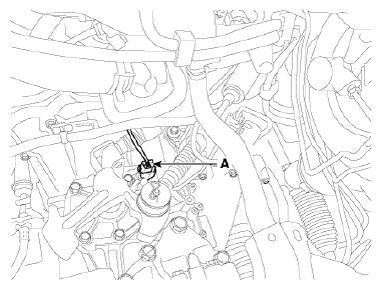

  3. Disconnect the back up lamp switch connector (A).
    G12576864Courtesy of KIA MOTORS AMERICA, INC.
  4. Check the continuity between power terminal and signal terminal.
    G12412785Courtesy of KIA MOTORS AMERICA, INC.

    *The back up Lamp "ON" shall keep over 0.5mm(0.02in) From ON-OFF poinrt.

    G12576865Courtesy of KIA MOTORS AMERICA, INC.
