Removal and Installation

Remove the engine cover.
Drain the engine coolant.
(Refer to Cooling System - " COOLANT ")
Remove the air cleaner assembly.
(Refer to Intake and Exhaust System - " AIR CLEANER ")

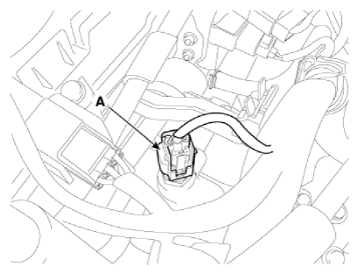

Disconnect the water temperature sensor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

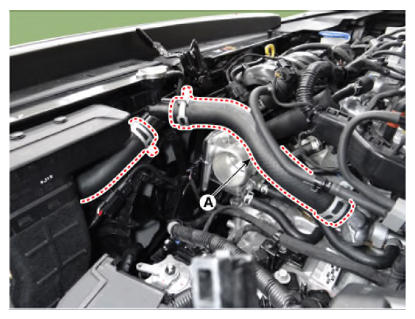

Disconnect the radiator upper hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

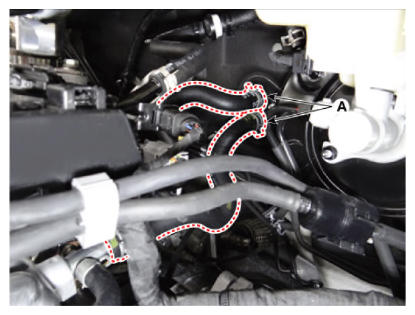

Disconnect the heater hoses (A).

Courtesy of KIA MOTORS AMERICA, INC.

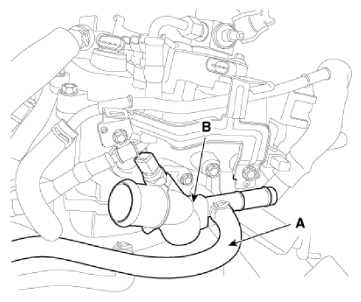

Disconnect the water hose (A) and then remove the water temperature control assembly (B) with the O-ring.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 kgf.m)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the intake manifold.
(Refer to Intake and Exhaust System - " INTAKE MANIFOLD ")

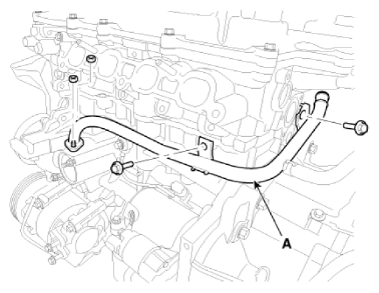

Remove the water pipe (A).
Tightening torque

M6 bolt and nuts:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

M8 bolt:

18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
NOTE:
- Install a new O-ring when replacing the water temperature control assembly.
- Clean the surface of the new O-ring, wet it with water and then install it.
Fill the engine coolant.
(Refer to Cooling System - " COOLANT ")
Start the engine and check for leaks.
